ESP32-DEVKITC-32D-F

Unknown

Espressif Systems

EVAL BOARD FOR ESP-WROOM-32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ESP32-WROOM-32D,32U Datasheet

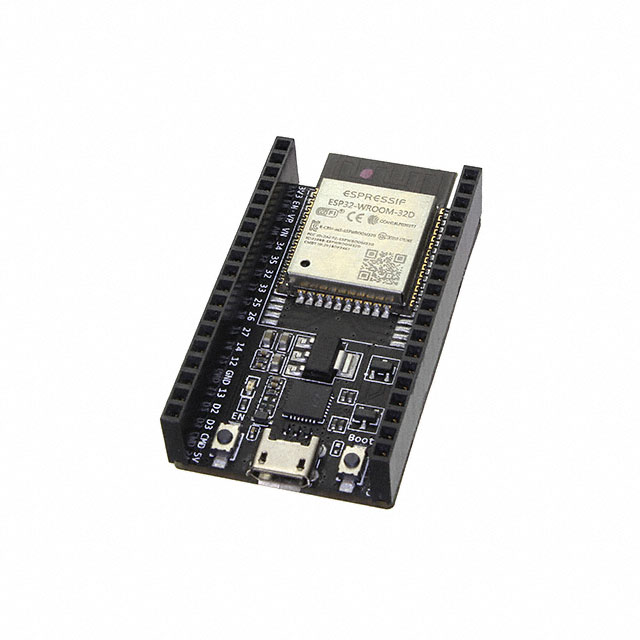

ESP32-DEVKITC-32D-F

Unknown

Espressif Systems

EVAL BOARD FOR ESP-WROOM-32

Deep-Dive with AI

DocumentsDatasheet ESP32-WROOM-32D,32U Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ESP32 Series

ESP-WROOM-32 - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE) 2.4GHz Evaluation Board

Documents

Technical documentation and resources

Datasheet

ESP32-WROOM-32D,32U Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-DEVKITC-32D-F	ESP32 Series

	-	-
Antenna Type	-	Antenna Not Included, PCB Trace, Antenna Not Included, U.FL, Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	-	63 - 112 mA
Current - Receiving	-	68 - 118 mA
Current - Receiving	-	80 mA
Current - Transmitting	-	233 - 379 mA
Current - Transmitting	-	130 - 260 mA
Current - Transmitting	-	80 mA
Data Rate	-	150 Mbps
For Use With/Related Products	ESP-WROOM-32	ESP-WROOM-32, ESP32, ESP32-WROOM-32UE, ESP32-PICO-MINI-02, ESP32-WROVER-E, ESP32-WROVER-IE, ESP32-WROVER-B, ESP32-PICO-D4, ESP32-WROOM-32E, ESP32-WROOM32D
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 - 2.5 GHz
Frequency	-	2.4 - 2.412 GHz
Memory Size	-	4 - 536 Gbit
Memory Size	-	8 - 16 MB
Memory Size	-	2 - 536 MB
Memory Size	-	2 MB
Memory Size	-	448 kB
Modulation	-	DQPSK, 8DPSK, DSSS, OFDM, CCK, DPSK
Mounting Type	-	Surface Mount, Chassis Mount
Note	-	Note: Not recommended for mass production use
Operating Temperature	-	65 - 125 °C
Operating Temperature	-	-40 °C
Package / Case	-	38-SMD Module, 56-VFQFN Exposed Pad, Module, 53-SMD Module, 77-SMD Module, 48-SMD Module, 55-SMD Module, 48-TFQFN Exposed Pad
Power - Output	-	18.5 - 20.5 dBm
Protocol	-	Class 1, Bluetooth v4.2 + EDR, Class 3, 802.11b/g/n, Class 2, Bluetooth v4.2 +EDR, Bluetooth v4.2, Bluetooth 4.2
RF Family/Standard	-	WiFi, Bluetooth
Sensitivity	-	-98.4 - -97 dBm
Serial Interfaces	-	GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO, PCM, JTAG
Supplied Contents	Board(s)	Board(s)
Type	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), Programmer
Utilized IC / Part	-	ESP32-S0WD, ESP32-S2, ESP32-PICO-V3-02, ESP32-D0WD, ESP32-D0WDQ6, ESP32-D0WD-V3, ESP32-D0WDR2-V3, ESP32-PICO-MINI-02, ESP32-U4WDH
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2.3 - 3 V

ESP32 Series

RF TXRX MOD BLUETOOTH WIFISMD

...

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Antenna Type	Package / Case	Serial Interfaces	Data Rate	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Utilized IC / Part	Sensitivity	Power - Output	Protocol	Frequency [Max]	Frequency [Min]	Type	For Use With/Related Products	Supplied Contents	Current - Receiving [Min]	Current - Receiving [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Memory Size [custom]	Memory Size [custom]	Modulation	Memory Size [custom]	Memory Size [custom]
Espressif Systems ESP32-SOLO-1(M113SH3200PH3Q0)	Surface Mount	3.6 V	3 V	Bluetooth, WiFi	Antenna Not Included	38-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps	32 Gbit	85 °C	-40 °C	2.4 GHz	ESP32-S0WD	-98 dBm	18.5 dBm	802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, Class 2, Class 3
Espressif Systems ESP32-WROOM-32-N4	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi		38-SMD Module		150 Mbps		85 °C	-40 °C			-98 dBm	20 dBm		2.5 GHz	2.4 GHz
Espressif Systems ESP32-DEVKITC-32D-F												2.4 GHz							802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver	ESP-WROOM-32	Board(s)
Espressif Systems ESP32-S2	Surface Mount	3.6 V	2.8 V	WiFi	Antenna Not Included	56-VFQFN Exposed Pad	ADC, I2C, I2S, PWM, SPI, UART	150 Mbps		125 °C	-40 °C	2.4 GHz	ESP32-S2	-97 dBm	19.5 dBm	802.11b/g/n						63 mA	68 mA	310 mA	160 mA
Espressif Systems ESP32-PICO-MINI-02	Chassis Mount			Bluetooth, WiFi	PCB Trace	Module	I2C, I2S, SPI, UART					2.4 GHz			19.5 dBm											8 MB	2 MB
Espressif Systems ESP32-LYRAT												2.4 GHz							802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver		Board(s)
Espressif Systems ESP32-PICO-MINI-02U-N8R2	Surface Mount	3.6 V	3 V	Bluetooth, WiFi	Antenna Not Included, U.FL	53-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C	2.4 GHz	ESP32-PICO-V3-02	-97 dBm	19.5 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3						111 mA	117 mA	368 mA	248 mA	8 MB	536 kB	8DPSK, DQPSK	2 MB	448 kB
Espressif Systems ESP32-WROOM-32D-N8	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi	Integrated, Trace	38-SMD Module	GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C		ESP32-D0WD	-98 dBm	20.5 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3	2.5 GHz	2.4 GHz										CCK, DSSS, OFDM
Espressif Systems ESP32-WROVER-IB (8MB)	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi	PCB Trace	38-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C		ESP32-D0WD	-98 dBm	20 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3	2.5 GHz	2.4 GHz
Espressif Systems ESP32-WROVER(M203QL6464PH3Q0)	Surface Mount	3.6 V	2.3 V	Bluetooth, WiFi	PCB Trace	38-SMD Module	ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART	150 Mbps	4 MB, 8 MB	85 °C	-40 °C		ESP32-D0WDQ6	-98 dBm	18.5 dBm	802.11b/g/n, Bluetooth v4.2 + EDR	2.484 GHz	2.412 GHz										DPSK, DQPSK
