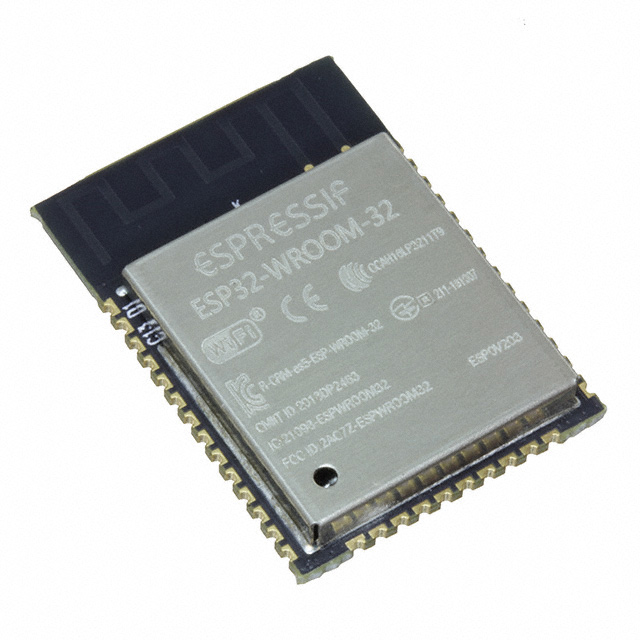

ESP32-WROOM-32-N4

Espressif Systems

RF TXRX MOD BLUETOOTH WIFI SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ESP32 Datasheet

ESP32-WROOM-32-N4

Espressif Systems

RF TXRX MOD BLUETOOTH WIFI SMD

Deep-Dive with AI

DocumentsDatasheet ESP32 Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.80
	Digi-Reel®	1	$ 3.80
	Tape & Reel (TR)	550	$ 3.80

Description

General part information

ESP32 Series

Bluetooth, WiFi Transceiver Module 2.4GHz ~ 2.5GHz Surface Mount

Documents

Technical documentation and resources

Datasheet

ESP32 Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-WROOM-32-N4	ESP32 Series

	-	-
Antenna Type	-	Antenna Not Included, PCB Trace, Antenna Not Included, U.FL, Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	-	63 - 112 mA
Current - Receiving	-	68 - 118 mA
Current - Receiving	-	80 mA
Current - Transmitting	-	233 - 379 mA
Current - Transmitting	-	130 - 260 mA
Current - Transmitting	-	80 mA
Data Rate	150 Mbps	150 Mbps
For Use With/Related Products	-	ESP-WROOM-32, ESP32, ESP32-WROOM-32UE, ESP32-PICO-MINI-02, ESP32-WROVER-E, ESP32-WROVER-IE, ESP32-WROVER-B, ESP32-PICO-D4, ESP32-WROOM-32E, ESP32-WROOM32D
Frequency	-	2.4 GHz
Frequency [Max]	2.5 GHz	2.484 - 2.5 GHz
Frequency [Min]	2.4 GHz	2.4 - 2.412 GHz
Memory Size	-	4 - 536 Gbit
Memory Size	-	8 - 16 MB
Memory Size	-	2 - 536 MB
Memory Size	-	2 MB
Memory Size	-	448 kB
Modulation	-	DQPSK, 8DPSK, DSSS, OFDM, CCK, DPSK
Mounting Type	Surface Mount	Surface Mount, Chassis Mount
Note	-	Note: Not recommended for mass production use
Operating Temperature [Max]	85 °C	65 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	38-SMD Module	38-SMD Module, 56-VFQFN Exposed Pad, Module, 53-SMD Module, 77-SMD Module, 48-SMD Module, 55-SMD Module, 48-TFQFN Exposed Pad
Power - Output	20 dBm	18.5 - 20.5 dBm
Protocol	-	Class 1, Bluetooth v4.2 + EDR, Class 3, 802.11b/g/n, Class 2, Bluetooth v4.2 +EDR, Bluetooth v4.2, Bluetooth 4.2
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Sensitivity	-98 dBm	-98.4 - -97 dBm
Serial Interfaces	-	GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO, PCM, JTAG
Supplied Contents	-	Board(s)
Type	-	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), Programmer
Utilized IC / Part	-	ESP32-S0WD, ESP32-S2, ESP32-PICO-V3-02, ESP32-D0WD, ESP32-D0WDQ6, ESP32-D0WD-V3, ESP32-D0WDR2-V3, ESP32-PICO-MINI-02, ESP32-U4WDH
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.3 - 3 V

ESP32 Series

RF TXRX MOD BLUETOOTH WIFISMD

...

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Antenna Type	Package / Case	Serial Interfaces	Data Rate	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Utilized IC / Part	Sensitivity	Power - Output	Protocol	Frequency [Max]	Frequency [Min]	Type	For Use With/Related Products	Supplied Contents	Current - Receiving [Min]	Current - Receiving [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Memory Size [custom]	Memory Size [custom]	Modulation	Memory Size [custom]	Memory Size [custom]
Espressif Systems ESP32-SOLO-1(M113SH3200PH3Q0)	Surface Mount	3.6 V	3 V	Bluetooth, WiFi	Antenna Not Included	38-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps	32 Gbit	85 °C	-40 °C	2.4 GHz	ESP32-S0WD	-98 dBm	18.5 dBm	802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, Class 2, Class 3
Espressif Systems ESP32-WROOM-32-N4	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi		38-SMD Module		150 Mbps		85 °C	-40 °C			-98 dBm	20 dBm		2.5 GHz	2.4 GHz
Espressif Systems ESP32-DEVKITC-32D-F												2.4 GHz							802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver	ESP-WROOM-32	Board(s)
Espressif Systems ESP32-S2	Surface Mount	3.6 V	2.8 V	WiFi	Antenna Not Included	56-VFQFN Exposed Pad	ADC, I2C, I2S, PWM, SPI, UART	150 Mbps		125 °C	-40 °C	2.4 GHz	ESP32-S2	-97 dBm	19.5 dBm	802.11b/g/n						63 mA	68 mA	310 mA	160 mA
Espressif Systems ESP32-PICO-MINI-02	Chassis Mount			Bluetooth, WiFi	PCB Trace	Module	I2C, I2S, SPI, UART					2.4 GHz			19.5 dBm											8 MB	2 MB
Espressif Systems ESP32-LYRAT												2.4 GHz							802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver		Board(s)
Espressif Systems ESP32-PICO-MINI-02U-N8R2	Surface Mount	3.6 V	3 V	Bluetooth, WiFi	Antenna Not Included, U.FL	53-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C	2.4 GHz	ESP32-PICO-V3-02	-97 dBm	19.5 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3						111 mA	117 mA	368 mA	248 mA	8 MB	536 kB	8DPSK, DQPSK	2 MB	448 kB
Espressif Systems ESP32-WROOM-32D-N8	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi	Integrated, Trace	38-SMD Module	GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C		ESP32-D0WD	-98 dBm	20.5 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3	2.5 GHz	2.4 GHz										CCK, DSSS, OFDM
Espressif Systems ESP32-WROVER-IB (8MB)	Surface Mount	3.6 V	2.7 V	Bluetooth, WiFi	PCB Trace	38-SMD Module	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	150 Mbps		85 °C	-40 °C		ESP32-D0WD	-98 dBm	20 dBm	802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, Class 2, Class 3	2.5 GHz	2.4 GHz
Espressif Systems ESP32-WROVER(M203QL6464PH3Q0)	Surface Mount	3.6 V	2.3 V	Bluetooth, WiFi	PCB Trace	38-SMD Module	ADC, GPIO, I2C, I2S, JTAG, PCM, SDIO, SPI, UART	150 Mbps	4 MB, 8 MB	85 °C	-40 °C		ESP32-D0WDQ6	-98 dBm	18.5 dBm	802.11b/g/n, Bluetooth v4.2 + EDR	2.484 GHz	2.412 GHz										DPSK, DQPSK
