BSC030N10NS5SCATMA1

Active

Infineon Technologies

OPTIMOS™ 5 POWER MOSFETS 100 V IN SUPERSO8 DSC PACKAGE WITH DUAL-SIDE COOLING FOR ENHANCED THERMAL PERFORMANCE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSC030N10NS5SCATMA1

Active

Infineon Technologies

OPTIMOS™ 5 POWER MOSFETS 100 V IN SUPERSO8 DSC PACKAGE WITH DUAL-SIDE COOLING FOR ENHANCED THERMAL PERFORMANCE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSC030N10NS5SCATMA1

Current - Continuous Drain (Id) @ 25°C	171 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	88 nC
Input Capacitance (Ciss) (Max) @ Vds	6500 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerWDFN
Power Dissipation (Max)	188 W
Rds On (Max) @ Id, Vgs	3 mOhm
Supplier Device Package	PG-WSON-8-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.8 V

BSC030 Series

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Technology	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs
Infineon Technologies BSC030P03NS3GAUMA1	PG-TDSON-8-1	-55 °C	150 °C	8-PowerTDFN	25 V	25.4 A 100 A	Surface Mount	MOSFET (Metal Oxide)	2.5 W 125 W	3.1 V	6 V 10 V	P-Channel	3 mOhm	14000 pF	186 nC	30 V
Infineon Technologies BSC030N10NS5SCATMA1	PG-WSON-8-2	-55 °C	175 ░C	8-PowerWDFN	20 V	171 A	Surface Mount	MOSFET (Metal Oxide)	188 W	3.8 V	6 V 10 V	N-Channel	3 mOhm	6500 pF		100 V	88 nC
Infineon Technologies BSC030N04NSGATMA1	PG-TDSON-8-1	-55 °C	150 °C	8-PowerTDFN	20 V	23 A 100 A	Surface Mount	MOSFET (Metal Oxide)	2.5 W 83 W	4 V	10 V	N-Channel	3 mOhm	4900 pF		40 V	61 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.76
		10	$ 3.16
		100	$ 2.24
		500	$ 1.86
		1000	$ 1.77
	Digi-Reel®	1	$ 4.76
		10	$ 3.16
		100	$ 2.24
		500	$ 1.86
		1000	$ 1.77
	Tape & Reel (TR)	4000	$ 1.77
Newark	Each (Supplied on Cut Tape)	1	$ 4.31
		10	$ 2.83
		25	$ 2.64
		50	$ 2.45
		100	$ 2.28
		250	$ 2.08
		500	$ 1.88
		1000	$ 1.78

Description

General part information

BSC030 Series

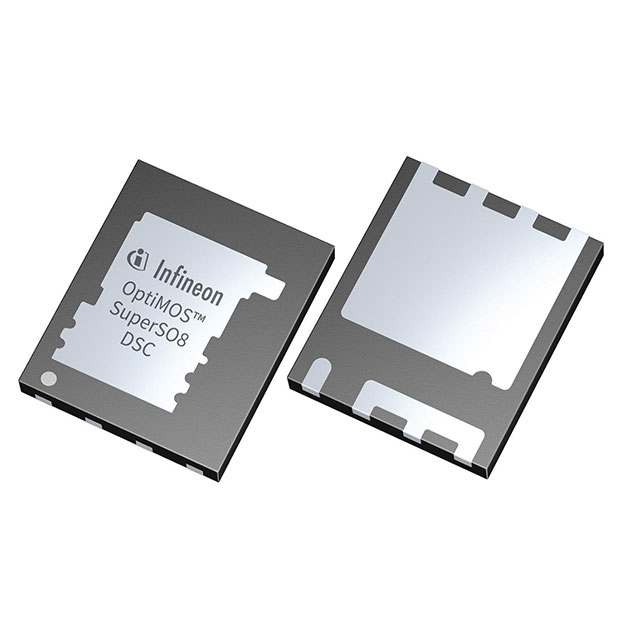

OptiMOS™ 5 power MOSFETs 100 VinSuperSO8 DSC (dual-side cooling)package offer all thermal management benefits of dual-side cooling solutions with industry-standard footprint. SuperSO8 DSC allows excellent thermal performance with two paths for heat dissipation (bottom through PCB + top through exposed clip and heatsink). About 30% of the heat generated on the MOSFET die is transferred through the top and less heat is transferred to the PCB. Thus,
