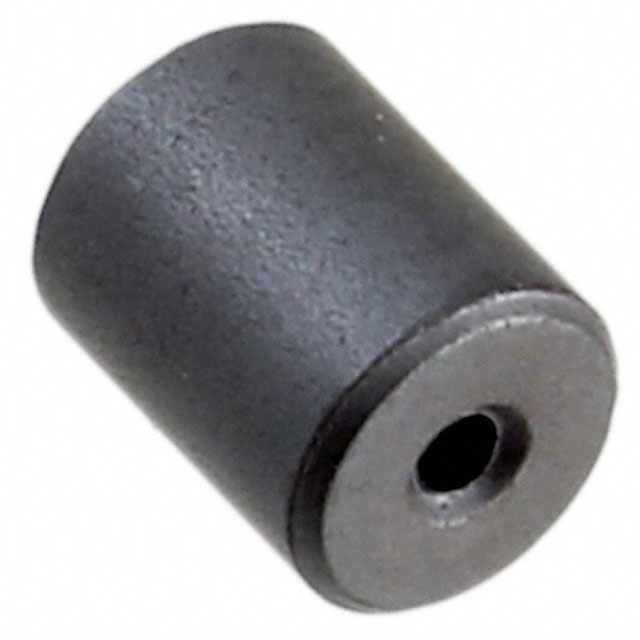

B-20L-34
ActiveKEMET
FERRITE CORE SOLID 0.8MM
Deep-Dive with AI
Search across all available documentation for this part.
B-20L-34
ActiveKEMET
FERRITE CORE SOLID 0.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B-20L-34 |
|---|---|
| Inner Dimension [diameter] | 0.031 " |
| Inner Dimension [diameter] | 0.8 mm |
| Material | NIZn |
| Mounting Type | Free Hanging |
| Outer Dimension [diameter] | 0.133 in |
| Outer Dimension [diameter] | 3.4 mm |
| Type | Round |
B-20L Series
| Part | Inner Dimension [diameter] | Inner Dimension [diameter] | Outer Dimension [diameter] | Outer Dimension [diameter] | Mounting Type | Length [x] | Length [x] | Type | Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 1.6 mm | 0.063 in | 4.4 mm | 0.173 " | Free Hanging | 7 mm | 0.276 in | Round | NIZn | ||
KEMET | 0.8 mm | 0.031 " | 3.4 mm | 0.133 in | Free Hanging | Round | NIZn | ||||
KEMET | 4.8 mm | 0.189 in | Free Hanging | Round | NIZn | 4.8 mm | 0.189 in | ||||
KEMET | 4.8 mm | 0.189 in | 9.7 mm | 0.382 " | Free Hanging | 4.2 mm | 0.165 in | Round | NIZn | ||
KEMET | 1 mm | 0.039 " | 2.5 mm | 0.098 in | Free Hanging | Round | NIZn | 1.2 mm | 0.047 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
B-20L Series
Solid Free Hanging Ferrite Core ID 0.031" Dia (0.80mm) OD 0.133" Dia (3.40mm) Length 0.173" (4.40mm)
Documents
Technical documentation and resources
