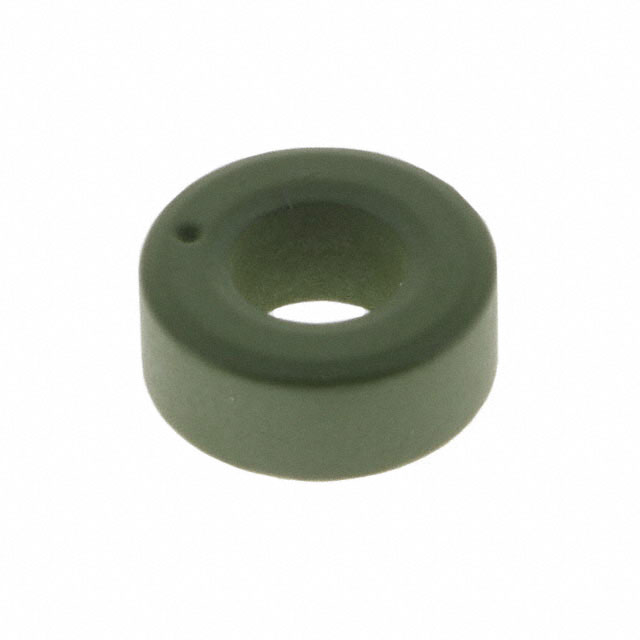

B-20L-95B
ActiveKEMET
NI-ZN BEAD, COATED 4.8MM
Deep-Dive with AI
Search across all available documentation for this part.
B-20L-95B
ActiveKEMET
NI-ZN BEAD, COATED 4.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B-20L-95B |
|---|---|
| Inner Dimension [diameter] | 0.189 in |
| Inner Dimension [diameter] | 4.8 mm |
| Length [x] | 4.2 mm |
| Length [x] | 0.165 in |
| Material | NIZn |
| Mounting Type | Free Hanging |
| Outer Dimension [diameter] | 0.382 " |
| Outer Dimension [diameter] | 9.7 mm |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.59 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.42 | |||
| 40 | $ 0.38 | |||
| 80 | $ 0.34 | |||
| 230 | $ 0.30 | |||
| 440 | $ 0.28 | |||
| 2500 | $ 0.23 | |||
| 5000 | $ 0.22 | |||
Description
General part information
B-20L Series
Solid Free Hanging Ferrite Core ID 0.189" Dia (4.80mm) OD 0.382" Dia (9.70mm) Length 0.165" (4.20mm)
