PTD901-2015K-A502

Active

Bourns Inc.

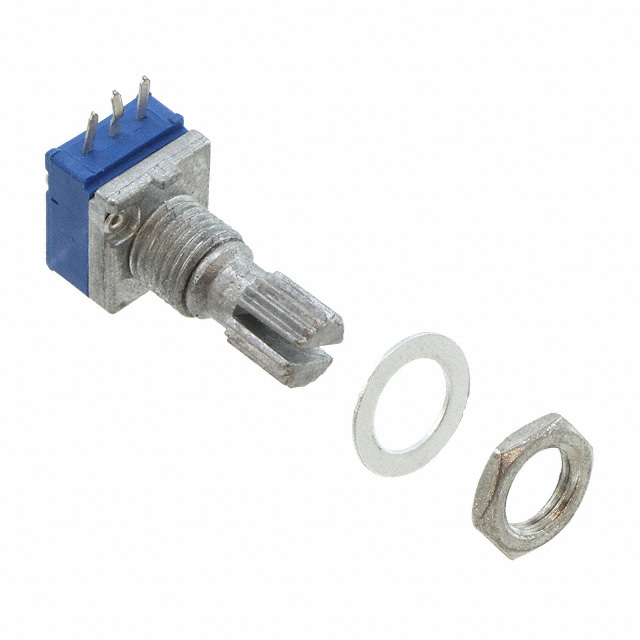

POT 5K OHM 1/40W CARBON LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTD901-2015K-A502

Active

Bourns Inc.

POT 5K OHM 1/40W CARBON LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTD901-2015K-A502

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Knurled and Slotted
Adjustment Type	Side Adjustment
Built in Switch	False
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.025 W
Power (Watts)	0.025 W
Resistance (Ohms)	5 kOhms
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.445 "
Size - Body [x]	11.3 mm
Size - Body [y]	0.374 in
Size - Body [y]	9.5 mm
Taper	Logarithmic
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTD901 Series

Part	Rotation	Actuator Length [z]	Actuator Length [z]	Taper	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Power (Watts)	Power (Watts)	Tolerance	Resistance (Ohms)	Bushing Thread	Bushing Thread	Termination Style	Adjustment Type	Resistive Material	Number of Turns	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Resistance (Ohms)	Actuator Length	Actuator Length [x]	Actuator Length [x]	Built in Switch	Power (Watts)
Bourns Inc. PTD901-2020K-B102	300 ░	20 mm	0.787 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	20 %	1 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted
Bourns Inc. PTD901-1015K-B103	300 ░		0.591 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	10 %		0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted	10k	15 mm
Bourns Inc. PTD901-1015F-B502	300 ░		0.591 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	10 %	5 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Flatted		15 mm
Bourns Inc. PTD901-2025K-B102	300 ░			Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	20 %	1 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted			0.984 in	25 mm
Bourns Inc. PTD901-1025K-B503	300 ░			Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	10 %	50 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted			0.984 in	25 mm
Bourns Inc. PTD901-2020K-B104	300 ░	20 mm	0.787 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	20 %	100 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted
Bourns Inc. PTD901-1220F-B503	300 ░	20 mm	0.787 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	10 %	50 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Flatted					Detent
Bourns Inc. PTD901-2015K-A502	300 ░		0.591 in	Logarithmic	0.374 in	9.5 mm	0.445 "	11.3 mm	0.025 W		20 %	5 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted		15 mm				0.025 W
Bourns Inc. PTD901-2020K-B503	300 ░	20 mm	0.787 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	20 %	50 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted
Bourns Inc. PTD901-2015K-A203	300 ░		0.591 in	Linear	0.374 in	9.5 mm	0.445 "	11.3 mm	0.05 W	50 mW	20 %	20 kOhms	0.75	M7	Board Locks PC Pins	Side Adjustment	Carbon	1	1	0.236 in	6 mm	Knurled and Slotted		15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	972	$ 1.25

Description

General part information

PTD901 Series

5k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.025W, 1/40W PC Pins, Board Locks
