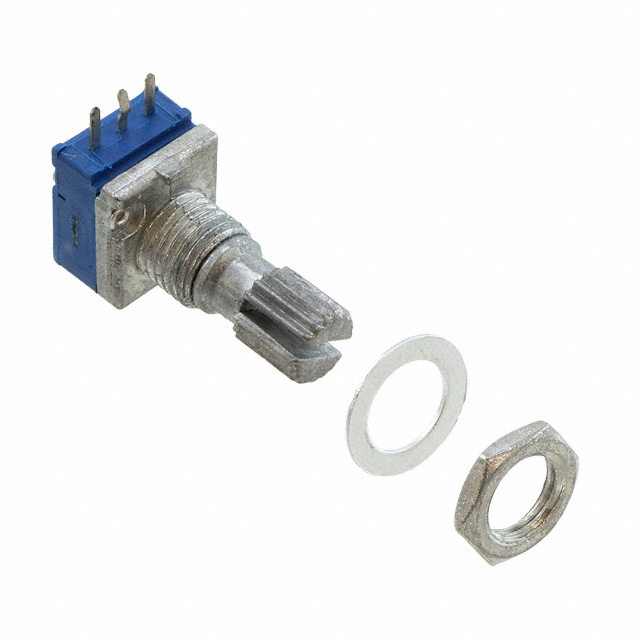

PTD901-2020K-B102
ActiveBourns Inc.
POT 1K OHM 1/20W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTD901-2020K-B102
ActiveBourns Inc.
POT 1K OHM 1/20W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTD901-2020K-B102 |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length [z] | 20 mm |
| Actuator Length [z] | 0.787 in |
| Actuator Type | Knurled and Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance (Ohms) | 1 kOhms |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [x] | 0.445 " |
| Size - Body [x] | 11.3 mm |
| Size - Body [y] | 0.374 in |
| Size - Body [y] | 9.5 mm |
| Taper | Linear |
| Termination Style | Board Locks, PC Pins |
| Tolerance | 20 % |
PTD901 Series
| Part | Rotation | Actuator Length [z] | Actuator Length [z] | Taper | Built in Switch | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Power (Watts) | Power (Watts) | Tolerance | Resistance (Ohms) | Bushing Thread | Bushing Thread | Termination Style | Adjustment Type | Resistive Material | Number of Turns | Number of Gangs | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Actuator Type | Resistance (Ohms) | Actuator Length | Actuator Length [x] | Actuator Length [x] | Built in Switch | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 300 ░ | 20 mm | 0.787 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 20 % | 1 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | |||||||
Bourns Inc. | 300 ░ | 0.591 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 10 % | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | 10k | 15 mm | |||||||
Bourns Inc. | 300 ░ | 0.591 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 10 % | 5 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Flatted | 15 mm | |||||||
Bourns Inc. | 300 ░ | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 20 % | 1 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | 0.984 in | 25 mm | |||||||
Bourns Inc. | 300 ░ | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 10 % | 50 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | 0.984 in | 25 mm | |||||||
Bourns Inc. | 300 ░ | 20 mm | 0.787 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 20 % | 100 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | |||||||
Bourns Inc. | 300 ░ | 20 mm | 0.787 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 10 % | 50 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Flatted | Detent | ||||||
Bourns Inc. | 300 ░ | 0.591 in | Logarithmic | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.025 W | 20 % | 5 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | 15 mm | 0.025 W | |||||||
Bourns Inc. | 300 ░ | 20 mm | 0.787 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 20 % | 50 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | |||||||
Bourns Inc. | 300 ░ | 0.591 in | Linear | 0.374 in | 9.5 mm | 0.445 " | 11.3 mm | 0.05 W | 50 mW | 20 % | 20 kOhms | 0.75 | M7 | Board Locks PC Pins | Side Adjustment | Carbon | 1 | 1 | 0.236 in | 6 mm | Knurled and Slotted | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 864 | $ 1.28 | |
Description
General part information
PTD901 Series
1k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.05W, 1/20W PC Pins, Board Locks
