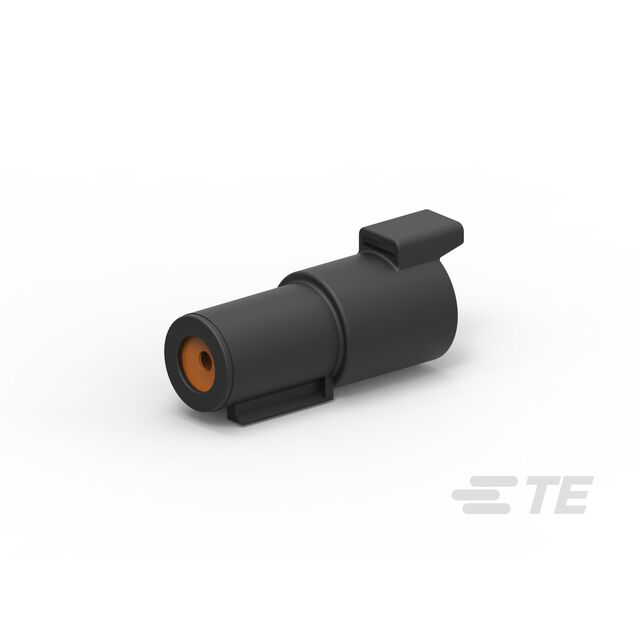

DTHD04-1-8P-E003
ActiveTE Connectivity Raychem Cable Protection
DTHD RECP ASM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DTHD04-1-8P-E003
ActiveTE Connectivity Raychem Cable Protection
DTHD RECP ASM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTHD04-1-8P-E003 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 8 Power |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Insert Material | Polyetherimide (PEI) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included, Jam Nut Not Included |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shielding | Unshielded |
| Type | For Male Pins |
DTHD04 Series
| Part | Contact Size | Material Flammability Rating | Contact Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Shape | Housing Color | Mounting Type | Note | Type | Connector Type | Shielding | Shell Material | Fastening Type | Primary Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 8 Power | UL94 V-0 | Crimp | Keyed | -55 °C | 125 °C | 1 | Circular | Black | Free Hanging (In-Line) | Contacts Not Included | For Male Pins | Receptacle Housing | Unshielded | Polyetherimide (PEI) | Latch Lock | ||
TE Connectivity Raychem Cable Protection | 12 Power | Crimp | Keyed | -55 °C | 125 °C | 1 | Circular | Black | Free Hanging (In-Line) | Contacts Not Included | For Male Pins | Receptacle Housing | Unshielded | Polyetherimide (PEI) | Latch Lock | Plastic | ||
TE Connectivity Raychem Cable Protection | 8 Power | Crimp | Keyed | -55 °C | 125 °C | 1 | Circular | Black | Free Hanging (In-Line) | Contacts Not Included Jam Nut Not Included | For Male Pins | Receptacle Housing | Unshielded | Plastic | Latch Lock | Plastic | Polyetherimide (PEI) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.96 | |
| 10 | $ 4.51 | |||
| 100 | $ 3.97 | |||
| 1000 | $ 2.88 | |||
Description
General part information
DTHD04 Series
1 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
