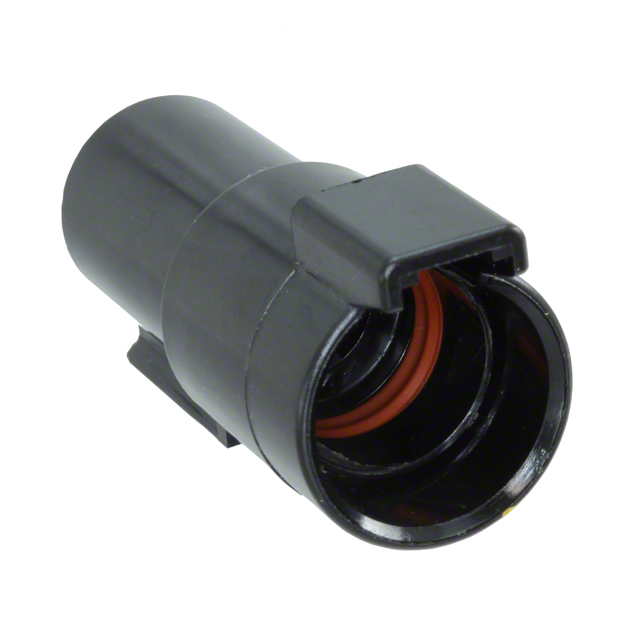

DTHD04-1-8P
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSNG MALE 1POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DTHD04-1-8P
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSNG MALE 1POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTHD04-1-8P |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 8 Power |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Material | Polyetherimide (PEI) |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.21 | |
| 10 | $ 3.99 | |||
| 25 | $ 3.59 | |||
| 50 | $ 3.33 | |||
| 100 | $ 3.09 | |||
| 250 | $ 2.80 | |||
| 500 | $ 2.61 | |||
| 1000 | $ 2.44 | |||
| 2500 | $ 2.23 | |||
Description
General part information
DTHD04 Series
1 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line)
