ANR80-UL-30A

Active

OptiFuse

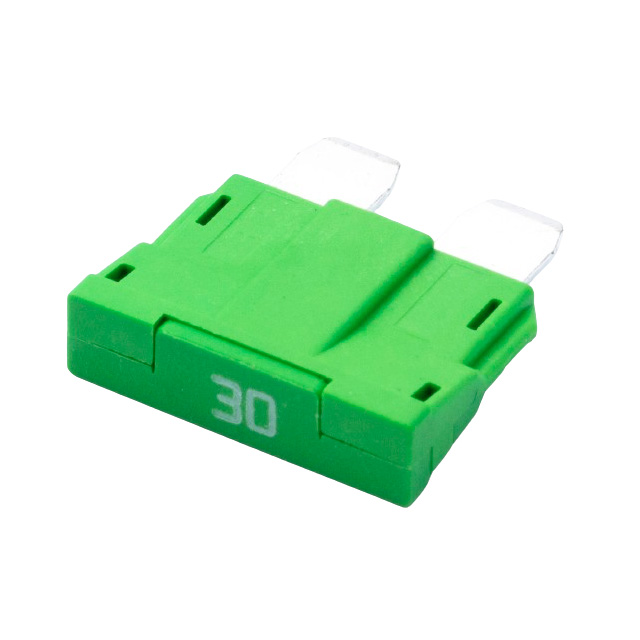

FUSE AUTO 30A 80VDC BLADE ATO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR80-UL-30A

Active

OptiFuse

FUSE AUTO 30A 80VDC BLADE ATO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.93
		10	$ 3.83
		25	$ 3.72
		50	$ 3.13
		100	$ 2.56
		250	$ 2.32
		500	$ 1.95
		1000	$ 1.70

Description

General part information

ANR80 Series

30 A AC 80 V DC Fuse Automotive Requires Holder Blade, ATO/ATC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANR80-UL-30A	ANR80 Series

Approval Agency	cURus, UL 248	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Green	Dark Blue, Light Green, Brown, Red, Tan, Green, Gray, Violet, Clear, Yellow
Current Rating (Amps)	30 A	0.5 - 30 A
DC Cold Resistance	0.00165 Ohms	0.00165 - 16 Ohms
Fuse Type	Automotive	Automotive
Melting I˛t	-	210
Melting I²t	1530	0.3 - 1530
Mounting Type	Requires Holder	Requires Holder
Package / Case	ATO, Blade, ATC	ATO, Blade, ATC
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.748 in	0.748 in
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	0.197 "	0.197 "
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [z]	0.531 in	0.531 in
Size / Dimension [z]	13.5 mm	13.5 mm
Voltage Rating - DC	80 V	80 V

ANR80 Series

FUSE AUTO 500MA 80VDC BLADE ATO

Part	Response Time	DC Cold Resistance	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Mounting Type	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Package / Case	Fuse Type	Melting I²t	Melting I˛t
OptiFuse ANR80-UL-500MA	Fast Blow	0.29 Ohms	0.5 A	cURus, UL 248	80 V	Requires Holder	Dark Blue	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	0.3
OptiFuse ANR80-UL-16A	Fast Blow		16 A	cURus, UL 248	80 V	Requires Holder	Light Green	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive
OptiFuse ANR80-UL-7.5A	Fast Blow	0.009 Ohms	7.5 A	cURus, UL 248	80 V	Requires Holder	Brown	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	73.1
OptiFuse ANR80-10A	Fast Blow	0.0065 Ohms	10 A		80 V	Requires Holder	Red	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive		210
OptiFuse ANR80-UL-5A	Fast Blow	16 mOhms	5 A	cURus, UL 248	80 V	Requires Holder	Tan	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	62.5
OptiFuse ANR80-UL-30A	Fast Blow	0.00165 Ohms	30 A	cURus, UL 248	80 V	Requires Holder	Green	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	1530
OptiFuse ANR80-UL-2A	Fast Blow	0.043 Ohms	2 A	cURus, UL 248	80 V	Requires Holder	Gray	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	9.6
OptiFuse ANR80-UL-3A	Fast Blow	0.03 Ohms	3 A	cURus, UL 248	80 V	Requires Holder	Violet	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive
OptiFuse ANR80-UL-25A	Fast Blow	0.0019 Ohms	25 A	cURus, UL 248	80 V	Requires Holder	Clear	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	813
OptiFuse ANR80-UL-20A	Fast Blow	0.003 Ohms	20 A	cURus, UL 248	80 V	Requires Holder	Yellow	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	360
