ANR80-UL-5A

Active

OptiFuse

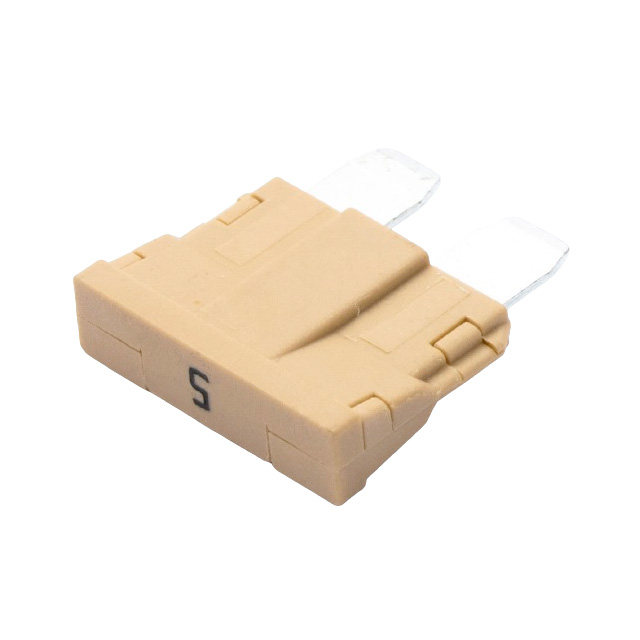

FUSE AUTO 5A 80VDC BLADE ATO/ATC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR80-UL-5A

Active

OptiFuse

FUSE AUTO 5A 80VDC BLADE ATO/ATC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANR80-UL-5A	ANR80 Series

Approval Agency	cURus, UL 248	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Tan	Dark Blue, Light Green, Brown, Red, Tan, Green, Gray, Violet, Clear, Yellow
Current Rating (Amps)	5 A	0.5 - 30 A
DC Cold Resistance	16 mOhms	0.00165 - 16 Ohms
Fuse Type	Automotive	Automotive
Melting I˛t	-	210
Melting I²t	62.5	0.3 - 1530
Mounting Type	Requires Holder	Requires Holder
Package / Case	ATO, Blade, ATC	ATO, Blade, ATC
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.748 in	0.748 in
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	0.197 "	0.197 "
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [z]	0.531 in	0.531 in
Size / Dimension [z]	13.5 mm	13.5 mm
Voltage Rating - DC	80 V	80 V

ANR80 Series

FUSE AUTO 500MA 80VDC BLADE ATO

Part	Response Time	DC Cold Resistance	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Mounting Type	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Package / Case	Fuse Type	Melting I²t	Melting I˛t
OptiFuse ANR80-UL-500MA	Fast Blow	0.29 Ohms	0.5 A	cURus, UL 248	80 V	Requires Holder	Dark Blue	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	0.3
OptiFuse ANR80-UL-16A	Fast Blow		16 A	cURus, UL 248	80 V	Requires Holder	Light Green	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive
OptiFuse ANR80-UL-7.5A	Fast Blow	0.009 Ohms	7.5 A	cURus, UL 248	80 V	Requires Holder	Brown	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	73.1
OptiFuse ANR80-10A	Fast Blow	0.0065 Ohms	10 A		80 V	Requires Holder	Red	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive		210
OptiFuse ANR80-UL-5A	Fast Blow	16 mOhms	5 A	cURus, UL 248	80 V	Requires Holder	Tan	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	62.5
OptiFuse ANR80-UL-30A	Fast Blow	0.00165 Ohms	30 A	cURus, UL 248	80 V	Requires Holder	Green	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	1530
OptiFuse ANR80-UL-2A	Fast Blow	0.043 Ohms	2 A	cURus, UL 248	80 V	Requires Holder	Gray	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	9.6
OptiFuse ANR80-UL-3A	Fast Blow	0.03 Ohms	3 A	cURus, UL 248	80 V	Requires Holder	Violet	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive
OptiFuse ANR80-UL-25A	Fast Blow	0.0019 Ohms	25 A	cURus, UL 248	80 V	Requires Holder	Clear	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	813
OptiFuse ANR80-UL-20A	Fast Blow	0.003 Ohms	20 A	cURus, UL 248	80 V	Requires Holder	Yellow	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	1 kA	ATC, ATO, Blade	Automotive	360

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.93
		10	$ 3.83
		25	$ 3.72
		50	$ 3.13
		100	$ 2.56
		250	$ 2.32
		500	$ 1.95
		1000	$ 1.70

Description

General part information

ANR80 Series

5 A AC 80 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
