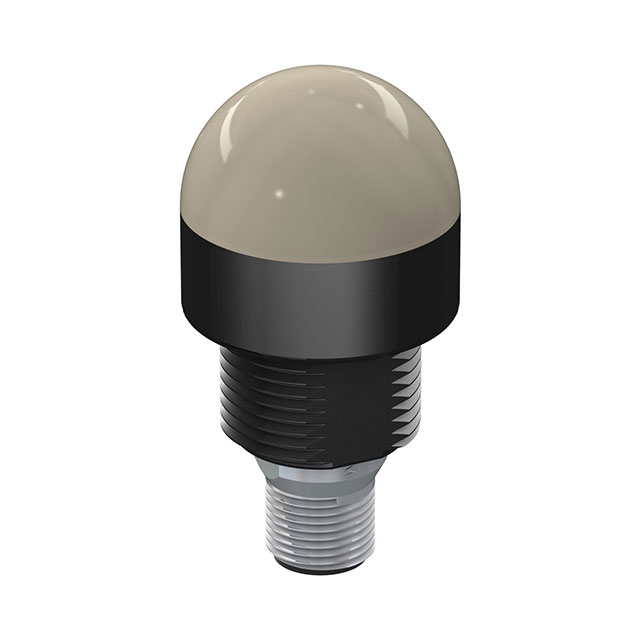

K30LGRXPQ
ActiveBANNER ENGINEERING
VISUAL SIGNAL INDICATOR UNITS ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K30LGRXPQ |
|---|---|
| Function - Audible | Multiple |
| Function - Lighting | Steady |
| Ingress Protection | IP69K, IP67 |
| Light Color | Red, Green |
| Number of Stacks | 2 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Wire Leads |
| Type | Complete Unit |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
K30LGR Series
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Light Color | Operating Temperature [Min] | Operating Temperature [Max] | Type | Termination Style | Function - Lighting | Number of Stacks | Ingress Protection | Function - Audible | Actuator Type | Actuator Marking | Panel Cutout Dimensions [diameter] | Switch Function | Voltage Rating - DC | Illumination Type, Color | Illumination Voltage (Nominal) | Current Rating (Amps) | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | 30 VDC | 10 VDC | Blue Green Red | -40 °C | 50 °C | Complete Unit | Cable with Connector | Steady | 3 | IP67 IP69K | Multiple | ||||||||||
BANNER ENGINEERING | 30 VDC | 10 VDC | Green Red Yellow | -40 °C | 50 °C | Complete Unit | Wire Leads | Steady | 3 | IP67 IP69K | Multiple | ||||||||||
BANNER ENGINEERING | -40 °C | 50 °C | Illuminated Standard | Cable Leads | IP67 - Dust Tight Waterproof | Button Domed Round | No Marking | 22 mm | Off-Mom | 30 V | Green/Red LED | 30 VDC | 150 mA | Panel Mount Front | SPST-NO | ||||||
BANNER ENGINEERING | -40 °C | 50 °C | Illuminated Standard | Connector | IP67 - Dust Tight Waterproof | Button Domed Round | No Marking | 22 mm | Off-Mom | 30 V | Green LED Red Yellow | 30 VDC | 150 mA | Panel Mount Front | SPST-NO | ||||||
BANNER ENGINEERING | 30 VDC | 10 VDC | Green Red | -40 °C | 50 °C | Complete Unit | Wire Leads | Steady | 2 | IP67 IP69K | |||||||||||
BANNER ENGINEERING | -40 °C | 50 °C | Illuminated Standard | Cable with Connector | IP67 - Dust Tight Waterproof | Button Domed Round | No Marking | 22 mm | Off-Mom | 30 V | Green/Red LED | 30 VDC | 150 mA | Panel Mount Front | SPST-NO | ||||||
BANNER ENGINEERING | 30 VDC | 10 VDC | Green Red Yellow | -40 °C | 50 °C | Complete Unit | Cable with Connector | Steady | 3 | IP67 IP69K | |||||||||||
BANNER ENGINEERING | 30 VDC | 10 VDC | Green Red | -40 °C | 50 °C | Complete Unit | Wire Leads | Steady | 2 | IP67 IP69K | |||||||||||
BANNER ENGINEERING | 30 VDC | 10 VDC | Blue Green Red | -40 °C | 50 °C | Complete Unit | Connector | Steady | 3 | IP67 IP69K | |||||||||||
BANNER ENGINEERING | 30 VDC | 10 VDC | Green Red | -40 °C | 50 °C | Complete Unit | Wire Leads | Steady | 2 | IP67 IP69K | Multiple |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
K30LGR Series
Stack Light Complete Unit Green, Red LED Wire Leads
