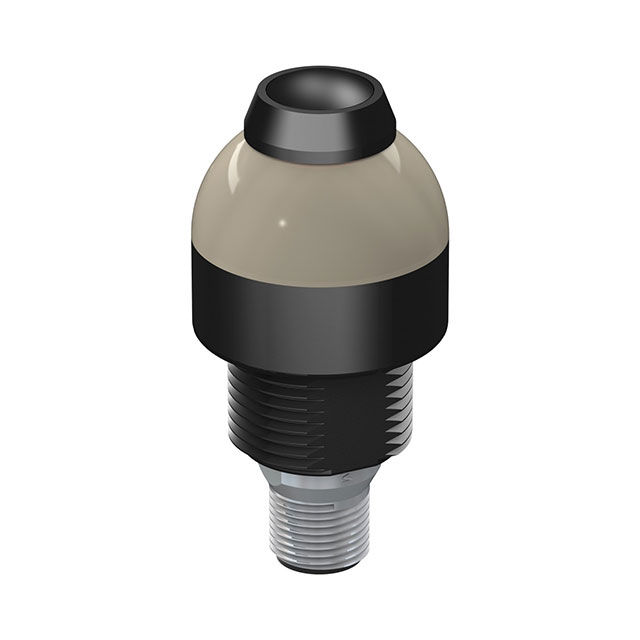

Specification	K30LGRYPPB2Q

Actuator Marking	No Marking
Actuator Type	Button, Round, Domed
Circuit	SPST-NO
Color	Yellow, Green, Red
Current Rating	150 mA
Illumination Type	LED
Illumination Voltage (Nominal)	30 VAC/DC
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	22 mm
Panel Cutout Shape	Circular
Switch Function	Off-Mom
Termination Style	Connector
Type	Standard, Illuminated
Voltage Rating - DC	30 V

K30LGR Series

Part	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Max)	Operating Temperature (Min)	Number of Stacks	Function - Audible	Function - Lighting	Light Color	Lamp Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Type	Termination Style	Actuator Type	Voltage Rating - DC	Circuit	Illumination Voltage (Nominal)	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Mounting Type	Switch Function	Color	Illumination Type	Actuator Marking
BANNER ENGINEERING K30LGRBP	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	3	Multiple	Steady	Blue Green Red	LED	30 VDC	10 VDC	Complete Unit	Cable with Connector
BANNER ENGINEERING K30LGRYP	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	3	Multiple	Steady	Green Red Yellow	LED	30 VDC	10 VDC	Complete Unit	Wire Leads
BANNER ENGINEERING K30LGRYPPB2Q	IP67	Dust Tight Waterproof	50 °C	-40 °C								Illuminated Standard	Connector	Button Domed Round	30 V	SPST-NO	30 VAC/DC	22 mm	Circular	150 mA	Front Panel Mount	Off-Mom	Green Red Yellow	LED	No Marking
BANNER ENGINEERING K30LGRX7P	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	2		Steady	Green Red	LED	30 VDC	10 VDC	Complete Unit	Wire Leads
BANNER ENGINEERING K30LGRXPPB2QP	IP67	Dust Tight Waterproof	50 °C	-40 °C								Illuminated Standard	Cable with Connector	Button Domed Round	30 V	SPST-NO	30 VAC/DC	22 mm	Circular	150 mA	Front Panel Mount	Off-Mom	Green Red	LED	No Marking
BANNER ENGINEERING K30LGRYPQP-18467	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	3		Steady	Green Red Yellow	LED	30 VDC	10 VDC	Complete Unit	Cable with Connector
BANNER ENGINEERING K30LGRXN-805784	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	2		Steady	Green Red	LED	30 VDC	10 VDC	Complete Unit	Wire Leads
BANNER ENGINEERING K30LGRBPQP	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	3		Steady	Blue Green Red	LED	30 VDC	10 VDC	Complete Unit	Connector
BANNER ENGINEERING K30LGRX7PQ	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	2	Multiple	Steady	Green Red	LED	30 VDC	10 VDC	Complete Unit	Connector
BANNER ENGINEERING K30LGRXPQ	IP67 IP69K	Dust Tight Water Resistant Waterproof	50 °C	-40 °C	1 2	Multiple	Steady	Green Red	LED	30 VDC	10 VDC	Beacon Complete Unit	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

K30LGRYPPB2Q | Datasheet

Drawing EN
