820B002-203R001

Active

MH Connectors

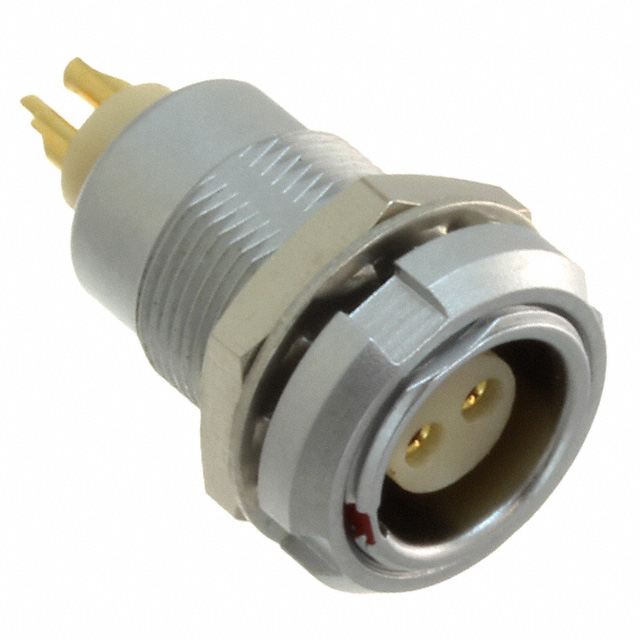

CIRCULAR CONNECTOR, QUIK-LOQ 820B SERIES, PANEL MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +4

820B002-203R001

Active

MH Connectors

CIRCULAR CONNECTOR, QUIK-LOQ 820B SERIES, PANEL MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	820B002-203R001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	430 V

820B Series

Part	Shielding	Contact Finish - Mating	Applications	Current Rating (Amps)	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Feature	Shell Finish	Connector Type	Mounting Type	Primary Material	Ingress Protection	Color	Fastening Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Voltage Rating	Orientation	Features	Backshell Material, Plating	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
MH Connectors 820BR03-2S3R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	8 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front Side Nut	Nickel	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Metal	IP50	Silver	Push-Pull	Solder	7 µin	0.178 µm	Brass	400 V	Keyed
MH Connectors 820B006-173L301	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2.5 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Male Pins Plug	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	280 V	Keyed	Backshell Strain Relief	Brass Chrome	6	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 820B002-203R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	10 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front or Rear Side Nut	Nickel	Receptacle Female Sockets		Metal	IP50	Silver	Push-Pull		7 µin	0.178 µm	Brass	430 V	Keyed			2
MH Connectors 820BR03-213R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	8 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front Side Nut	Nickel	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Metal	IP50	Black Silver	Push-Pull	Solder	7 µin	0.178 µm	Brass	400 V	Keyed	Board Guide
MH Connectors 820B002-173L501	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	10 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Male Pins Plug	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	430 V	Keyed	Backshell Strain Relief	Brass Chrome	2					5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820B003-273L401	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	8 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	400 V	Keyed	Backshell Strain Relief	Brass Chrome										3.3 mm 4.2 mm	0.13 in 0.165 in
MH Connectors 820B009-273L301	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	200 V	Keyed	Backshell Strain Relief	Brass Chrome	9	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 820B007-273L501	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2.5 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	260 V	Keyed	Backshell Strain Relief	Brass Chrome	7					5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820B009-173L401	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Male Pins Plug	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	200 V	Keyed	Backshell Strain Relief	Brass Chrome	9									3.3 mm 4.2 mm	0.13 in 0.165 in
MH Connectors 820BR04-213R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	7 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front Side Nut	Nickel	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Metal	IP50	Black Silver	Push-Pull	Solder	7 µin	0.178 µm	Brass	280 V	Keyed	Board Guide		4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.96
		10	$ 17.48
		36	$ 16.72
		72	$ 16.18
		108	$ 15.64
		252	$ 14.78
		468	$ 14.35
Newark	Each	25	$ 16.72
		50	$ 16.17

Description

General part information

820B Series

The 820B002-203R001 from Norcomp is an 820B series IP50 rated-9mm push pull female connector with 2 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.
