820B002-173L501

Active

MH Connectors

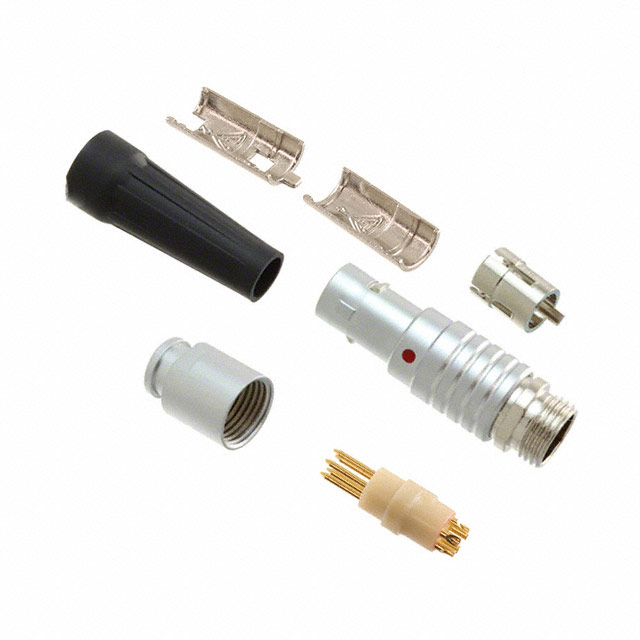

CIRCULAR CONNECTOR, QUIK-LOQ 820B SERIES, CABLE MOUNT PLUG, 2 CONTACTS, SOLDER PIN, PUSH-PULL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet White Papers EN +4

820B002-173L501

Active

MH Connectors

CIRCULAR CONNECTOR, QUIK-LOQ 820B SERIES, CABLE MOUNT PLUG, 2 CONTACTS, SOLDER PIN, PUSH-PULL

Deep-Dive with AI

DocumentsDatasheet White Papers EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	820B002-173L501

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [diameter]	5.2 mm
Cable Opening [Max] [diameter]	0.205 in
Cable Opening [Min] [diameter]	0.169 in
Cable Opening [Min] [diameter]	4.3 mm
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	430 V

820B Series

Part	Shielding	Contact Finish - Mating	Applications	Current Rating (Amps)	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Feature	Shell Finish	Connector Type	Mounting Type	Primary Material	Ingress Protection	Color	Fastening Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Voltage Rating	Orientation	Features	Backshell Material, Plating	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
MH Connectors 820BR03-2S3R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	8 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front Side Nut	Nickel	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Metal	IP50	Silver	Push-Pull	Solder	7 µin	0.178 µm	Brass	400 V	Keyed
MH Connectors 820B006-173L301	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2.5 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Male Pins Plug	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	280 V	Keyed	Backshell Strain Relief	Brass Chrome	6	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 820B002-203R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	10 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front or Rear Side Nut	Nickel	Receptacle Female Sockets		Metal	IP50	Silver	Push-Pull		7 µin	0.178 µm	Brass	430 V	Keyed			2
MH Connectors 820BR03-213R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	8 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front Side Nut	Nickel	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Metal	IP50	Black Silver	Push-Pull	Solder	7 µin	0.178 µm	Brass	400 V	Keyed	Board Guide
MH Connectors 820B002-173L501	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	10 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Male Pins Plug	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	430 V	Keyed	Backshell Strain Relief	Brass Chrome	2					5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820B003-273L401	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	8 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	400 V	Keyed	Backshell Strain Relief	Brass Chrome										3.3 mm 4.2 mm	0.13 in 0.165 in
MH Connectors 820B009-273L301	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	200 V	Keyed	Backshell Strain Relief	Brass Chrome	9	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 820B007-273L501	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2.5 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Receptacle Female Sockets	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	260 V	Keyed	Backshell Strain Relief	Brass Chrome	7					5.2 mm	0.205 in	0.169 in	4.3 mm
MH Connectors 820B009-173L401	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	2 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy		Nickel	Male Pins Plug	Free Hanging (In-Line)	Metal	IP50	Black Silver	Push-Pull		7 µin	0.178 µm	Brass	200 V	Keyed	Backshell Strain Relief	Brass Chrome	9									3.3 mm 4.2 mm	0.13 in 0.165 in
MH Connectors 820BR04-213R001	Shielded	Gold	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	7 A	Polyphenylene Sulfide (PPS)	200 °C	-40 °C	Copper Alloy	Bulkhead - Front Side Nut	Nickel	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Metal	IP50	Black Silver	Push-Pull	Solder	7 µin	0.178 µm	Brass	280 V	Keyed	Board Guide		4
