G125-MH11605L3P
ActiveHarwin Inc.

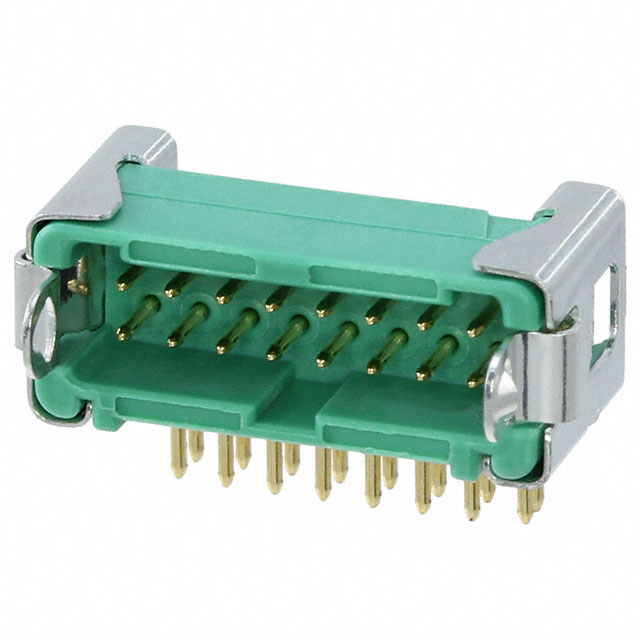

CONNECTOR, HEADER, 16POS, 2ROW, 1.25MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-MH11605L3P
ActiveHarwin Inc.
CONNECTOR, HEADER, 16POS, 2ROW, 1.25MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MH11605L3P |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Features | Solder Retention |
| Insulation Color | Green |
| Insulation Height | 5.56 mm |
| Insulation Height [z] | 0.219 in |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VDC |
G125-MH1 Series
| Part | Mounting Type | Number of Rows | Fastening Type | Shrouding | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Number of Positions | Contact Shape | Material Flammability Rating | Voltage Rating | Number of Positions Loaded | Insulation Height [z] | Insulation Height | Insulation Color | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Type | Termination | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Insulation Height | Features | Number of Positions | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 50 | Circular | UL94 V-0 | 250 VDC | All | 0.219 in | 5.56 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | |||||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 34 | Circular | UL94 V-0 | 600 VAC | All | 5.55 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | 8 µin | 0.203 µm | Gold | 0.218 in | ||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 10 | Circular | UL94 V-0 | 600 VAC | All | 5.55 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | 8 µin | 0.203 µm | Gold | 0.218 in | ||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Lock | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | Circular | UL94 V-0 | 250 VDC | All | 0.219 in | 5.56 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Solder Retention | 16 | ||||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Polyamide (PA4T) Nylon 4T | Board to Board Cable | 20 | Circular | UL94 V-0 | All | 5.55 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 3.2 mm | Gold | 0.218 in | 0.126 in | |||||||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Polyamide (PA4T) Nylon 4T | Board to Board Cable | 12 | Circular | UL94 V-0 | All | 5.55 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 3.2 mm | Gold | 0.218 in | 0.126 in | |||||||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Lock | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 10 | Circular | UL94 V-0 | 250 VDC | All | 0.219 in | 5.56 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Solder Retention | ||||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Lock | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 10 | Circular | UL94 V-0 | 250 VDC | All | 0.219 in | 5.56 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | |||||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 26 | Circular | UL94 V-0 | 600 VAC | All | 5.55 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -55 °C | 125 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | 8 µin | 0.203 µm | Gold | 0.218 in | ||||
Harwin Inc. | Through Hole Right Angle | 2 | Latch Holder | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Board to Board Cable | 34 | Circular | UL94 V-0 | 250 VDC | All | 0.219 in | 5.56 mm | Green | Header | 0.049 in | 1.25 mm | 1.25 mm | 0.049 in | 2 A | -65 ░C | 150 °C | Phosphor Bronze | Male Pin | Solder | Gold | 0.13 in | 3.3 mm |
