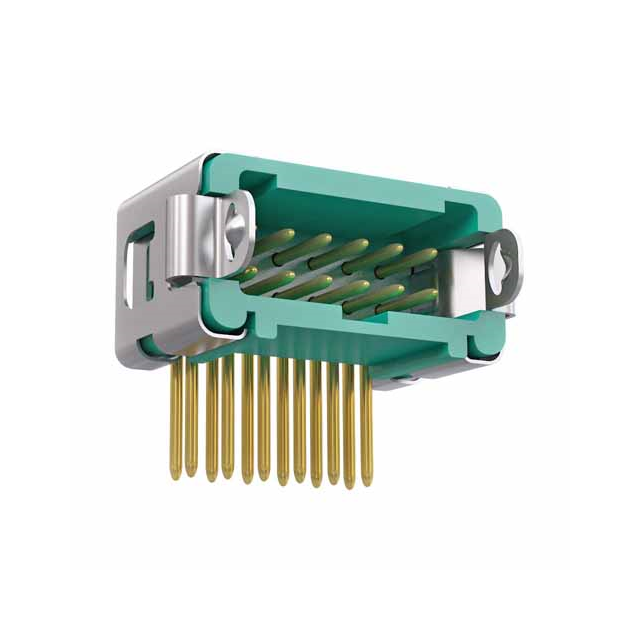

G125-MH11205L3R

Active

Harwin Inc.

CONN HDR R/A 12POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0 G125-0010005 +2

G125-MH11205L3R

Active

Harwin Inc.

CONN HDR R/A 12POS

Deep-Dive with AI

DocumentsG125-2040696L0 G125-0010005 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MH11205L3R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Latch Holder
Insulation Color	Green
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyamide (PA4T), Nylon 4T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

G125-MH1 Series

Part	Mounting Type	Number of Rows	Fastening Type	Shrouding	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions	Contact Shape	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height	Insulation Color	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Termination	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Height	Features	Number of Positions	Contact Length - Post [x]
Harwin Inc. G125-MH15005L5P	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	50	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm
Harwin Inc. G125-MH13405L1R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	34	Circular	UL94 V-0	600 VAC	All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm	8 µin	0.203 µm	Gold	0.218 in
Harwin Inc. G125-MH11005L1R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	10	Circular	UL94 V-0	600 VAC	All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm	8 µin	0.203 µm	Gold	0.218 in
Harwin Inc. G125-MH11605L3P	Through Hole Right Angle	2	Latch Lock	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable		Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm					Solder Retention	16
Harwin Inc. G125-MH12005L5R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Polyamide (PA4T) Nylon 4T			Board to Board Cable	20	Circular	UL94 V-0		All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold		3.2 mm			Gold	0.218 in			0.126 in
Harwin Inc. G125-MH11205L3R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Polyamide (PA4T) Nylon 4T			Board to Board Cable	12	Circular	UL94 V-0		All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold		3.2 mm			Gold	0.218 in			0.126 in
Harwin Inc. G125-MH11005L3P	Through Hole Right Angle	2	Latch Lock	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	10	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm					Solder Retention
Harwin Inc. G125-MH11005L1P	Through Hole Right Angle	2	Latch Lock	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	10	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm
Harwin Inc. G125-MH12605L1R	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	26	Circular	UL94 V-0	600 VAC	All		5.55 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-55 °C	125 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm	8 µin	0.203 µm	Gold	0.218 in
Harwin Inc. G125-MH13405L5P	Through Hole Right Angle	2	Latch Holder	Shrouded - 4 Wall	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Board to Board Cable	34	Circular	UL94 V-0	250 VDC	All	0.219 in	5.56 mm	Green	Header	0.049 in	1.25 mm	1.25 mm	0.049 in	2 A	-65 ░C	150 °C	Phosphor Bronze	Male Pin	Solder	Gold	0.13 in	3.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

G125-MH1 Series

Connector Header Through Hole, Right Angle 12 position 0.049" (1.25mm)

Documents

Technical documentation and resources

G125-2040696L0

G125-0010005

G125 Spec Sheet

Datasheet
