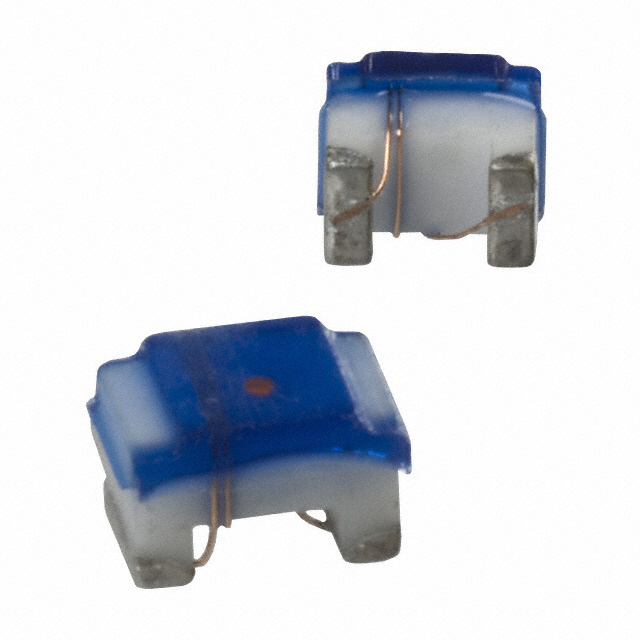

PM0805-10NM-RC

Active

Bourns Inc.

FIXED IND 10NH 600MA 80 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM0805-10NM-RC

Active

Bourns Inc.

FIXED IND 10NH 600MA 80 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM0805-10NM-RC

Current Rating (Amps)	600 mA
DC Resistance (DCR)	80 mOhm
Frequency - Self Resonant	4.8 GHz
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Inductance	10 nH
Inductance Frequency - Test	250 MHz
Material - Core	Alumina
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0805
Q @ Freq	500 MHz, 60
Shielding	Unshielded
Size / Dimension [x]	2.1 mm
Size / Dimension [x]	0.083 in
Size / Dimension [y]	0.059 "
Size / Dimension [y]	1.5 mm
Supplier Device Package	0805 (2012 Metric)
Tolerance	20 %
Type	Wirewound, Drum Core

PM0805 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Package / Case	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	DC Resistance (DCR)	Tolerance	Q @ Freq	Type	Material - Core	Shielding	Supplier Device Package	DC Resistance (DCR) [Max]
Bourns Inc. PM0805-R22K-RC	125 °C	-40 °C	100 MHz	0805	300 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	220 nH	1.5 mm	0.059 "	860 MHz	1.1 Ohm	10 %	50 250 MHz	Drum Core Wirewound	Alumina	Unshielded	0805 (2012 Metric)
Bourns Inc. PM0805-47NM-RC	125 °C	-40 °C	200 MHz	0805	0.5 A	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	47 nH	1.5 mm	0.059 "	1.7 GHz	150 mOhm	20 %	60 500 MHz	Drum Core Wirewound	Alumina	Unshielded	0805 (2012 Metric)
Bourns Inc. PM0805-15NM	125 °C	-55 °C	250 MHz	0805	600 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	15 nH	1.5 mm	0.059 "	3.4 GHz		20 %	50 500 MHz	Drum Core Wirewound	Ceramic	Unshielded	0805 (2012 Metric)	170 mOhm
Bourns Inc. PM0805-82NK	125 °C	-55 °C	150 MHz	0805	400 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	82 nH	1.5 mm	0.059 "	1.3 GHz	420 mOhm	10 %	65 500 MHz	Drum Core Wirewound	Ceramic	Unshielded	0805 (2012 Metric)
Bourns Inc. PM0805-27NM-RC	125 °C	-40 °C	250 MHz	0805	600 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	27 nH	1.5 mm	0.059 "	2.6 GHz	120 mOhm	20 %	60 500 MHz	Drum Core Wirewound	Alumina	Unshielded	0805 (2012 Metric)
Bourns Inc. PM0805-10NM-RC	125 °C	-40 °C	250 MHz	0805	600 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	10 nH	1.5 mm	0.059 "	4.8 GHz	80 mOhm	20 %	60 500 MHz	Drum Core Wirewound	Alumina	Unshielded	0805 (2012 Metric)
Bourns Inc. PM0805-39NM	125 °C	-55 °C	250 MHz	0805	0.5 A	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	39 nH	1.5 mm	0.059 "	2 GHz	290 mOhm	20 %	60 500 MHz	Drum Core Wirewound	Ceramic	Unshielded	0805 (2012 Metric)
Bourns Inc. PM0805-3N3M	125 °C	-55 °C	250 MHz	0805	600 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	3.3 nH	1.5 mm	0.059 "	6 GHz		20 %	1.5 GHz 50	Drum Core Wirewound	Ceramic	Unshielded	0805 (2012 Metric)	80 mOhm
Bourns Inc. PM0805-R12K	125 °C	-55 °C	150 MHz	0805	400 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	120 nH	1.5 mm	0.059 "	1.1 GHz		10 %	50 250 MHz	Drum Core Wirewound	Ceramic	Unshielded	0805 (2012 Metric)	510 mOhm
Bourns Inc. PM0805-R18K-RC	125 °C	-40 °C	100 MHz	0805	350 mA	0.059 "	2.1 mm	1.5 mm	0.083 in	Surface Mount	180 nH	1.5 mm	0.059 "	900 MHz	850 mOhm	10 %	50 250 MHz	Drum Core Wirewound	Alumina	Unshielded	0805 (2012 Metric)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.33
		10	$ 0.27
		25	$ 0.25
		50	$ 0.23
		100	$ 0.20
		250	$ 0.20
		500	$ 0.18
		1000	$ 0.14
	Digi-Reel®	1	$ 0.33
		10	$ 0.27
		25	$ 0.25
		50	$ 0.23
		100	$ 0.20
		250	$ 0.20
		500	$ 0.18
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.14
		4000	$ 0.13
		6000	$ 0.13
		10000	$ 0.13
		50000	$ 0.12

Description

General part information

PM0805 Series

10 nH Unshielded Drum Core, Wirewound Inductor 600 mA 80mOhm 0805 (2012 Metric)
