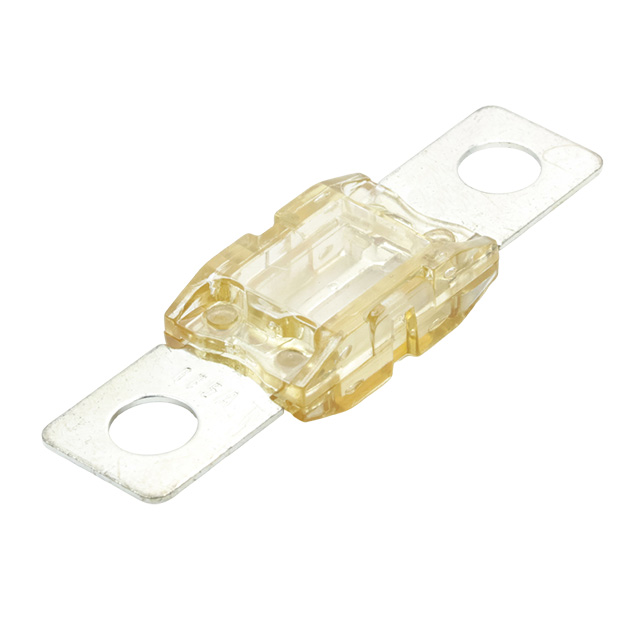

MGGA-175A
ActiveOptiFuse
FUSE AUTO 175A 32VDC AUTO LINK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGGA-175A
ActiveOptiFuse
FUSE AUTO 175A 32VDC AUTO LINK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGGA-175A |
|---|---|
| Approval Agency | ISO |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | White |
| Current Rating (Amps) | 175 A |
| DC Cold Resistance | 0.00027 Ohms |
| Fuse Type | Automotive |
| Melting I˛t | 168000 |
| Mounting Type | Bolt Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Auto Link |
| Response Time | Slow Blow |
| Size / Dimension [x] | 1.15 " |
| Size / Dimension [x] | 29.2 mm |
| Size / Dimension [y] | 0.748 in |
| Size / Dimension [y] | 19 mm |
| Size / Dimension [z] | 0.37 in |
| Size / Dimension [z] | 9.4 mm |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.83 | |
| 10 | $ 10.43 | |||
| 25 | $ 10.06 | |||
| 50 | $ 7.71 | |||
| 100 | $ 6.47 | |||
| 250 | $ 6.12 | |||
| 500 | $ 5.26 | |||
| 1000 | $ 4.99 | |||
Description
General part information
MGGA Series
175 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
