MGGA Series

Part	Melting I²t	DC Cold Resistance	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Response Time	Voltage Rating - DC	Breaking Capacity	Package / Case	Color	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Mounting Type	Fuse Type	Approval Agency
OptiFuse MGGA-200A	204	0.00026 Ohms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	Blue	125 °C	-40 °C	200 A	Bolt Mount	Automotive	ISO
OptiFuse MGGA-125A	57.8	0.00043 Ohms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	Green	125 °C	-40 °C	125 A	Bolt Mount	Automotive	ISO
OptiFuse MGGA-225A	257000	0.23 mOhms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	Tan	125 °C	-40 °C	225 A	Bolt Mount	Automotive	ISO

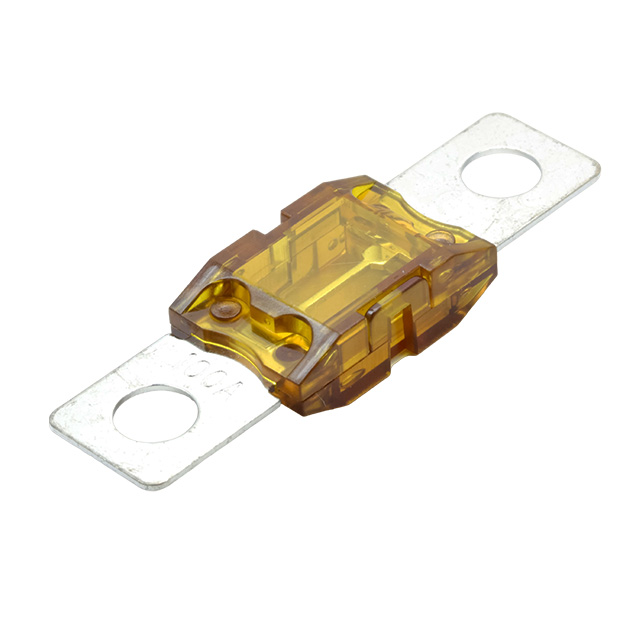

OptiFuse MGGA-100A	31	0.00055 Ohms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	Yellow	125 °C	-40 °C	100 A	Bolt Mount	Automotive	ISO
OptiFuse MGGA-250A	389000	0.00019 Ohms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	Pink	125 °C	-40 °C	250 A	Bolt Mount	Automotive	ISO
OptiFuse MGGA-175A	168000	0.00027 Ohms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	White	125 °C	-40 °C	175 A	Bolt Mount	Automotive	ISO
OptiFuse MGGA-150A	100	0.00035 Ohms	0.37 in	0.748 in	1.15 in	Slow Blow	32 V	1 kA	Auto Link	Orange	125 °C	-40 °C	150 A	Bolt Mount	Automotive	ISO
