TMUX646ZECR
Active6-GHZ, 5-V, 2:1 (SPDT) 10-CHANNEL MIPI SWITCH WITH 1.8-V LOGIC SUPPORT
TMUX646ZECR
Active6-GHZ, 5-V, 2:1 (SPDT) 10-CHANNEL MIPI SWITCH WITH 1.8-V LOGIC SUPPORT
Description
General part information
TMUX646 Series
The TMUX646 is an optimized 10-channel (5 differential) single-pole, double-throw bi-directional switch for use in high speed applications. The TMUX646 is designed to facilitate multiple MIPI compliant devices to connect to a single CSI/DSI, C-PHY/D-PHY module. The device also supports SATA, SAS, MIPI DSI/CSI, LVDS, RGMII, DDR and Ethernet interfaces.
The device has a bandwidth of 6 GHz, low channel-to-channel skew with little signal degradation, and wide margins to compensate for layout losses. The device’s low current consumption meets the needs of low power applications, including mobile phones and other personal electronics.
The TMUX646 is an optimized 10-channel (5 differential) single-pole, double-throw bi-directional switch for use in high speed applications. The TMUX646 is designed to facilitate multiple MIPI compliant devices to connect to a single CSI/DSI, C-PHY/D-PHY module. The device also supports SATA, SAS, MIPI DSI/CSI, LVDS, RGMII, DDR and Ethernet interfaces.
Technical Specifications
Parameters and characteristics for this part
| Specification | TMUX646ZECR |
|---|---|
| -3db Bandwidth | 6 GHz |
| Applications | Networking, Telecommunications |
| Demultiplexer Outputs | 1 |
| Mounting Type | Surface Mount |
| Multiplexer Inputs | 2 |
| Number of Channels | 10 |
| On-State Resistance (Max) | 9 Ohm, 10 Ohm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

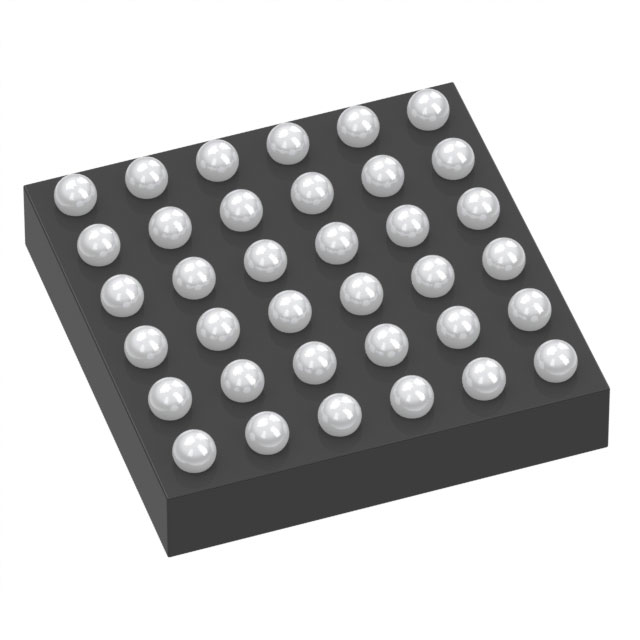

| Package / Case | 36-UFBGA |
| Package Length | 2.45 mm |
| Package Name | 36-NFBGA |
| Package Width | 2.45 mm |
| Switch Circuit Type | SPDT |
| Voltage - Supply, Single (V+) (Maximum) | 5.5 V |
| Voltage - Supply, Single (V+) (Minimum) | 1.5 V |
