1049067
ActiveSICK, Inc.

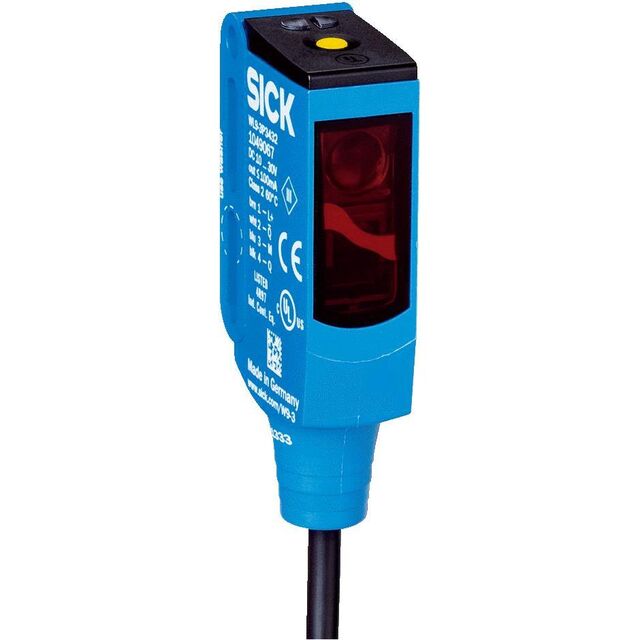

SENSOR RETROREFLECTIVE 3M PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1049067
ActiveSICK, Inc.
SENSOR RETROREFLECTIVE 3M PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1049067 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 4.724 in |
| Cable Length | 120 mm |
| Connection Method | Cable with Connector |
| Ingress Protection | IP69K, IP67, IP66 |
| Light Source | RED (650nm) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP |
| Response Time | 500 µs |
| Sensing Distance | 3000 mm |
| Sensing Distance | 118.11 in |
| Sensing Method | Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
WL9 Series
| Part | Cable Length | Cable Length | Light Source | Response Time | Sensing Method | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Distance | Sensing Distance | Connection Method | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Adjustment Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. | 78.74 in | 2 m | RED (650nm) | 500 µs | Retroreflective | IP66 IP67 IP69K | -40 °C | 60 °C | 98.425 in | 2.5 m | Cable | NPN | 30 VDC | 10 VDC | |
SICK, Inc. | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 15.748 in | 400 mm | Connector M12 | NPN | 30 VDC | 10 VDC | Adjustable | |||
SICK, Inc. | 4.724 in | 120 mm | RED (650nm) | 500 µs | Retroreflective | IP66 IP67 IP69K | -40 °C | 60 °C | 98.425 in | 2.5 m | Cable with Connector | PNP | 30 VDC | 10 VDC | |
SICK, Inc. | 4.724 in | 120 mm | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 15.748 in | 400 mm | Cable with Connector | PNP | 30 VDC | 10 VDC | Adjustable | |
SICK, Inc. | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 15.748 in | 400 mm | Connector M8 | PNP | 30 VDC | 10 VDC | Adjustable | |||
SICK, Inc. | 4.724 in | 120 mm | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 15.748 in | 400 mm | Cable with Connector | PNP | 30 VDC | 10 VDC | Adjustable | |
SICK, Inc. | 4.724 in | 120 mm | RED (650nm) | 500 µs | Retroreflective | IP66 IP67 IP69K | -40 °C | 60 °C | 118.11 in | 3000 mm | Cable with Connector | PNP | 30 VDC | 10 VDC | Adjustable |
SICK, Inc. | 78.74 in | 2 m | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 15.748 in | 400 mm | Cable | PNP | 30 VDC | 10 VDC | Adjustable | |
SICK, Inc. | 78.74 in | 2 m | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 196.85 in | 5 m | Cable | NPN | 30 VDC | 10 VDC | Adjustable | |
SICK, Inc. | 78.74 in | 2 m | RED (650nm) | 500 µs | Retroreflective | -40 °C | 60 °C | 196.85 in | 5 m | Cable | PNP | 30 VDC | 10 VDC | Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 242.93 | |
| 5 | $ 227.64 | |||
| 10 | $ 221.93 | |||
| 25 | $ 221.00 | |||
Description
General part information
WL9 Series
Retroreflective Optical Sensor 118.110" (3m) PNP
