Description

General part information

WL9 Series

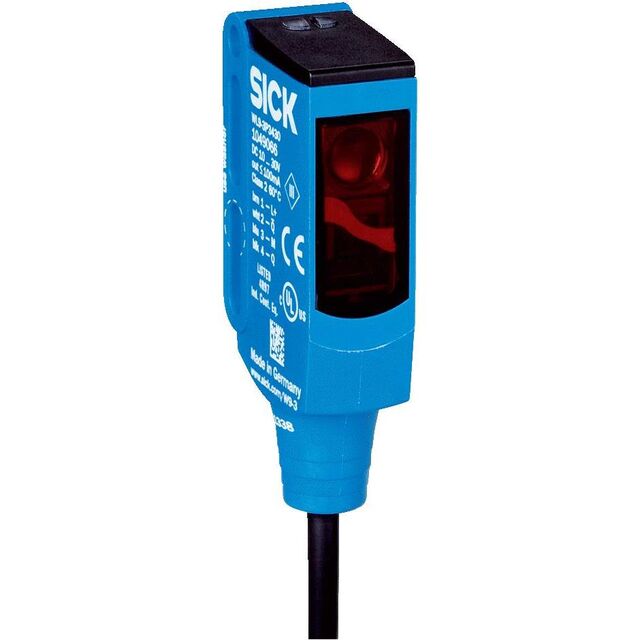

Retroreflective Optical Sensor 98.425" (2.5m) NPN

Technical Specifications

Parameters and characteristics for this part

Specification	1049069

Cable Length	78.74 in
Connection Method	Cable
Ingress Protection	IP69K, IP66, IP67
Light Source	Red
Light Source Wavelength (Red)	650 nm
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Output Configuration	NPN
Response Time	500 µs
Sensing Distance	98.425 "
Sensing Method	Retroreflective
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

WL9 Series

Part	Cable Length	Connection Method	Output Configuration	Sensing Distance	Response Time	Ingress Protection	Sensing Method	Operating Temperature (Max)	Operating Temperature (Min)	Light Source Wavelength (Red)	Light Source	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Adjustment Type	Sensing Distance Minimum	Sensing Distance Maximum
SICK, Inc. 1049069	78.74 in	Cable	NPN	98.425 "	500 µs	IP66 IP67 IP69K	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC
SICK, Inc. WL9-3P1232	196.85 in	Cable	PNP	196.85 "	500 µs	IP66	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. WL9-3N2462		Connector M12	NPN	15.748 "	500 µs	IP66	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. 1065065	4.724 in	Cable with Connector	PNP	98.425 "	500 µs	IP66 IP67 IP69K	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC
SICK, Inc. WL9-3P3162	4.724 in	Cable with Connector	PNP	15.748 "	500 µs	IP66	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. WL9-3P2262		Connector M8	PNP	15.748 "	500 µs	IP66	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. WL9-3P3462	4.724 in	Cable with Connector	PNP	15.748 "	500 µs	IP66	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. 1049067	4.724 in	Cable with Connector	PNP	118.11 "	500 µs	IP66 IP67 IP69K	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. 1049054	78.74 in	Cable	PNP	15.748 "	500 µs	IP66	Retroreflective	60 °C	-40 °C	650 nm	Red	10 VDC	30 VDC	Adjustable
SICK, Inc. 1049063		4POS Connector M12	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable		500 µs	IP66 IP67 IP69K	Retroreflective	60 °C	-40 °C		Red LED	10 VDC	30 VDC		0 cm	118.11 "
