3RT2518 Series

Part	Coil Voltage	Termination Style	Release Time	Operate Time	Coil Power	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage AC (Max)	Must Operate Voltage	Pin Count	Contact Form	Features	Contact Rating (Current)
Siemens 3RT25182AP60	220 V	Spring Terminal
Siemens 3RT25182BB40	24 VDC	Spring Terminal	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	19.2 V	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	16 A
Siemens 3RT25182BM40	220 V	Screw Terminal	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	176 VAC	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	16 A
Siemens 3RT25181AP00	230 VDC	Screw Terminal	13 ms	35 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	184 VDC	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	16 A
Siemens 3RT25182BG40	125 VDC
Siemens 3RT25181BG40	125 VDC													16 A

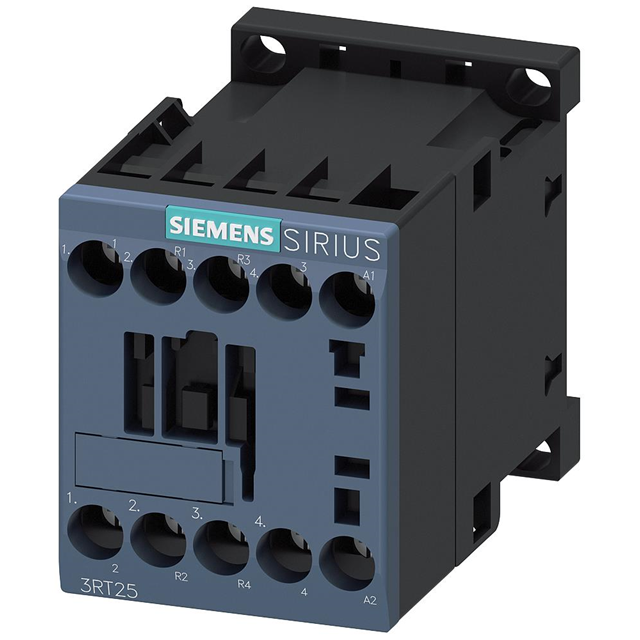

Siemens 3RT25181AB00	24 VDC	Screw Terminal	13 ms	35 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	19.2 V	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	16 A
Siemens 3RT25181BM40	220 V	Screw Terminal	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	176 VAC	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	16 A
Siemens 3RT25182AB00	24 VDC	Spring Terminal	13 ms	35 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	19.2 V	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	16 A
Siemens 3RT25182AK60	120 V	Spring Terminal	13 ms	35 ms	43 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	96 V	4	2 A B Form PST-2NO/2NC	Auxiliary Contacts	20 A
