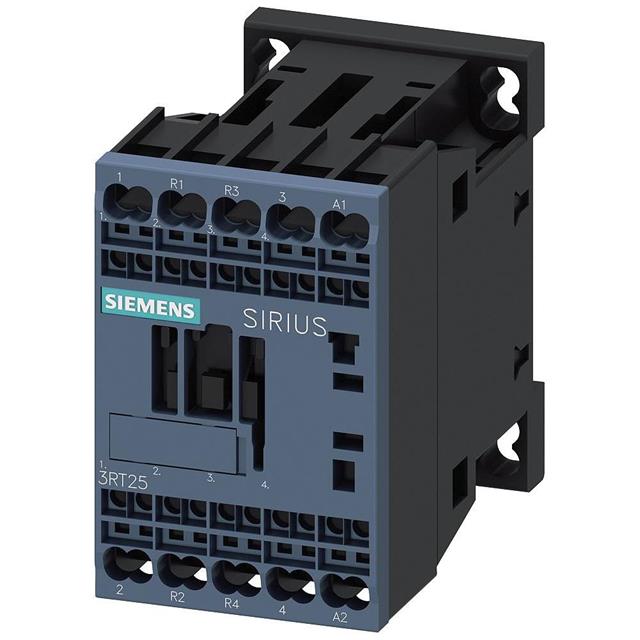

3RT25182AP60

Active

Siemens

CONTACTOR S00 16A 240VAC 2NO/2NC

Search across all available documentation for this part.

Active

Siemens

CONTACTOR S00 16A 240VAC 2NO/2NC

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Coil Voltage	Coil Power	Contact Form	Contact Rating (Current)	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Features	Release Time	Must Operate Voltage	Mounting Type	Switching Voltage
Siemens 3RT25182AP60	Spring Terminal	220 VAC/DC
Siemens 3RT25182BB40	Spring Terminal	24 VDC	4 W	4PST-2NO/2NC (2 Form A 2 Form B)	16 A	100 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	19.2 VDC	Chassis Mount DIN Rail	690 VAC
Siemens 3RT25182BM40	Screw Terminal	220 VDC	4 W	4PST-2NO/2NC (2 Form A 2 Form B)	16 A	100 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	176 VDC	Chassis Mount DIN Rail	690 VAC
Siemens 3RT25181AP00	Screw Terminal	230 VAC	37 VA	4PST-2NO/2NC (2 Form A 2 Form B)	16 A	35 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	184 VAC	Chassis Mount DIN Rail	690 VAC
Siemens 3RT25182BG40		125 VDC
Siemens 3RT25181BG40		125 VAC/DC			16 A
Siemens 3RT25181AB00	Screw Terminal	24 VAC	37 VA	4PST-2NO/2NC (2 Form A 2 Form B)	16 A	35 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	19.2 VAC	Chassis Mount DIN Rail	690 VAC
Siemens 3RT25181BM40	Screw Terminal	220 VDC	4 W	4PST-2NO/2NC (2 Form A 2 Form B)	16 A	100 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	176 VDC	Chassis Mount DIN Rail	690 VAC
Siemens 3RT25182AB00	Spring Terminal	24 VAC	37 VA	4PST-2NO/2NC (2 Form A 2 Form B)	16 A	35 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	19.2 VAC	Chassis Mount DIN Rail	690 VAC
Siemens 3RT25182AK60	Spring Terminal	120 VAC	43 VA	4PST-2NO/2NC (2 Form A 2 Form B)	20 A	35 ms	-25 °C	60 °C	Auxiliary Contacts	13 ms	96 VAC	Chassis Mount DIN Rail	690 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 126.13
