Technical Specifications
Parameters and characteristics for this part
| Specification | AGF800-48S28-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 28.6 A |
| Efficiency | 93 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-DIP Module, Full Brick |
| Power (Watts) | 800 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

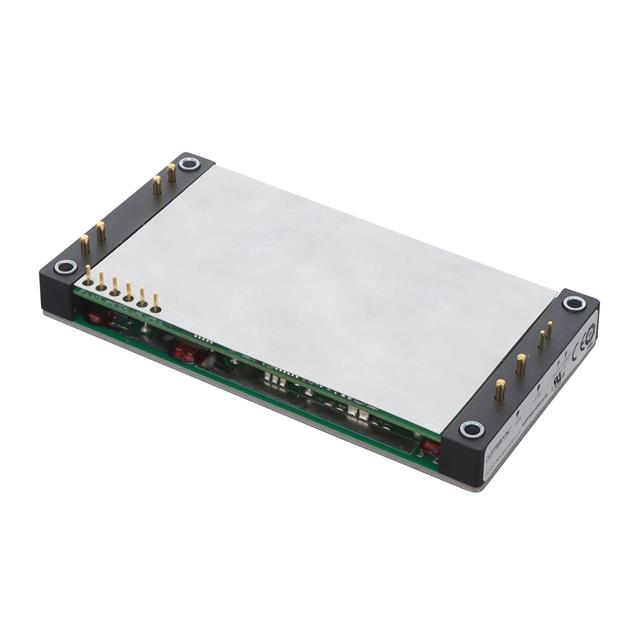

AGF800 Series
Isolated DC/DC Converters - Through Hole 800W 36-75Vin Single 28V 28.5A Neg Logic
