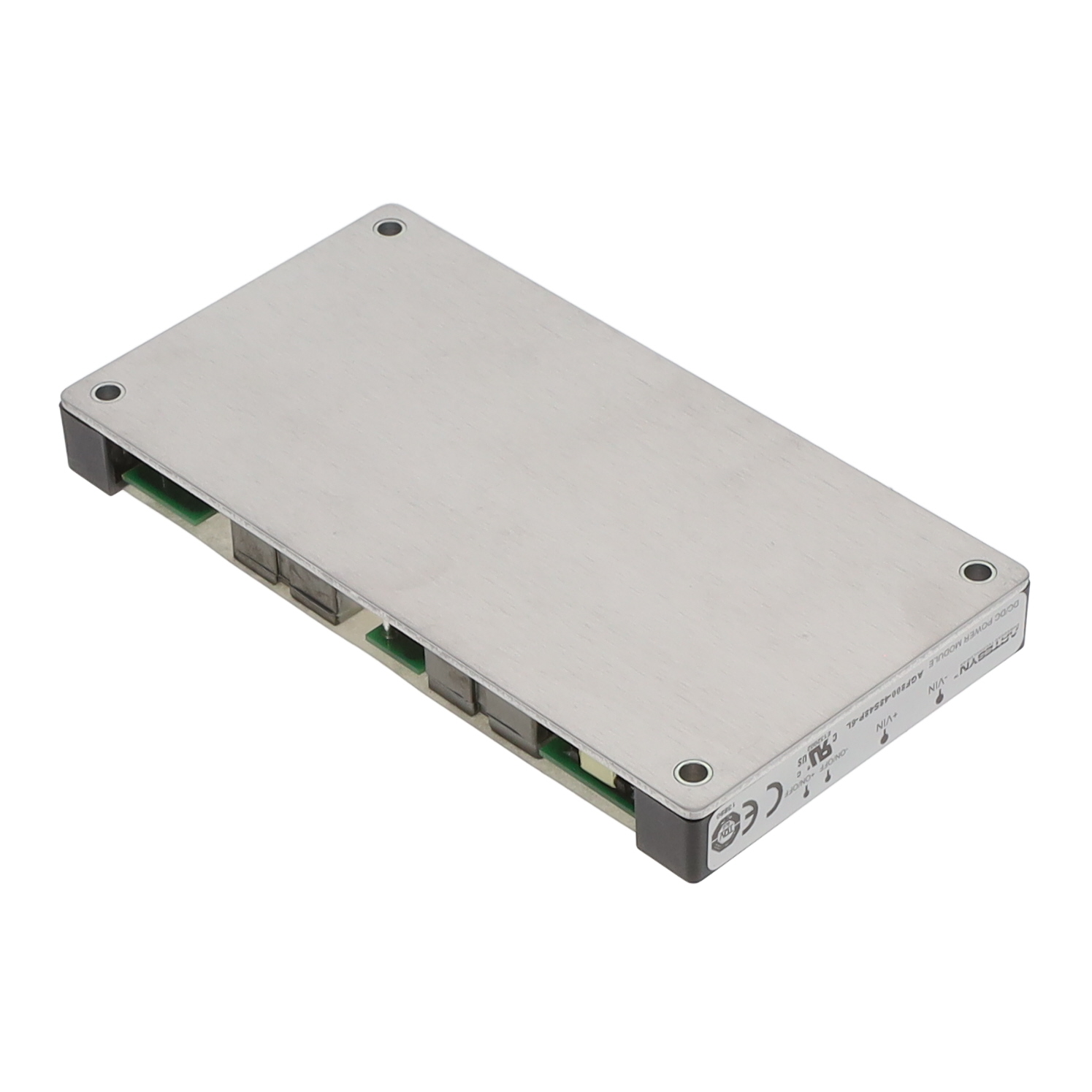

AGF800-48S48P-6L
ActiveARTESYN / Advanced Energy
800W, 36 - 75VIN, SINGLE, 48V@16.7A, 93.5% EFF, FULL BRICK ALUMINUM SUBSTRATE, POSITIVE LOGIC/PIN LENGTH:3.8MM
AGF800-48S48P-6L
ActiveARTESYN / Advanced Energy
800W, 36 - 75VIN, SINGLE, 48V@16.7A, 93.5% EFF, FULL BRICK ALUMINUM SUBSTRATE, POSITIVE LOGIC/PIN LENGTH:3.8MM
Description
General part information
AGF800 Series
Isolated Module DC DC Converter 1 Output 48V 16.7A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AGF800-48S48P-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 16.7 A |
| Efficiency | 94.5 % |
| Features | OTP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 14-DIP Module, Full Brick |
| Power (Watts) | 800 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 4.6 in |
| Size / Dimension Width | 2.4 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 48 V |
