BQ79600EVM-030
ActiveSAFETI SPI/UART TO DAISY
Deep-Dive with AI
Search across all available documentation for this part.

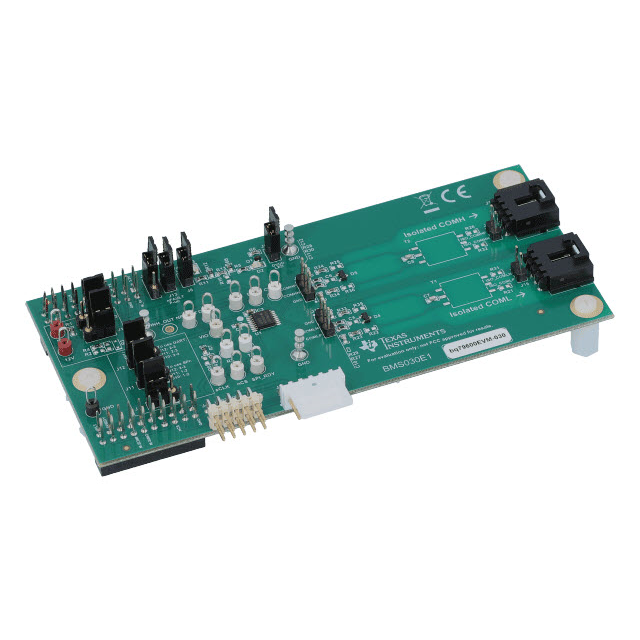

BQ79600EVM-030
ActiveSAFETI SPI/UART TO DAISY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ79600EVM-030 | BQ79600 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Function | Battery Charger | Battery Charger |
| Grade | - | Automotive |
| Interface | - | UART, SPI |
| Mounting Type | - | Surface Mount |
| Package / Case | - | 0.173 " |
| Package / Case | - | 16-TSSOP |
| Package / Case | - | 4.4 mm |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ79600 | BQ79600 |
| Voltage - Supply | - | 24 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 358.80 | |
BQ79600 Series
Automotive SPI/UART communication interface functional-safety compliant with automatic host wakeup
| Part | Grade | Package / Case [x] | Package / Case | Package / Case [x] | Interface | Supplier Device Package | Qualification | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplied Contents | Utilized IC / Part | Type | Function | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ79600PWRQ1 | Automotive | 0.173 " | 16-TSSOP | 4.4 mm | SPI, UART | 16-TSSOP | AEC-Q100 | Surface Mount | 24 V | 5.5 V | |||||
Texas Instruments BQ79600EVM-030 | Board(s) | BQ79600 | Power Management | Battery Charger | Board(s) |
Description
General part information
BQ79600 Series
The BQ79600-Q1 is a communication (bridge) IC designed to interface between a microcontroller (MCU) and TI battery monitoring ICs, for example the BQ7961X-Q1. The information from the MCU is translated by the device to signals recognized by TI’s battery management daisy chain protocol, and transmitted out. And signals from daisy chain are decoded to bit stream and then sent back to MCU.
When the MCU and PMIC are in SHUTDOWN/ SLEEP, the BQ79600-Q1 can wake them up if any unmasked fault is detected when using ring architecture.
The BQ79600-Q1 is a communication (bridge) IC designed to interface between a microcontroller (MCU) and TI battery monitoring ICs, for example the BQ7961X-Q1. The information from the MCU is translated by the device to signals recognized by TI’s battery management daisy chain protocol, and transmitted out. And signals from daisy chain are decoded to bit stream and then sent back to MCU.
