Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17572EVKIT# | MAXM17572 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1 A | 1 A |
| Current - Output (Max) | - | 1 A |
| Features | - | Remote On/Off, Adjustable Output |
| Frequency - Switching | 900 kHz | 900 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 12-WFDFN Exposed Pad |
| Power (Watts) | - | 12 W |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.14 " |
| Size / Dimension | - | 3.5 mm |
| Size / Dimension | - | 2.5 mm |
| Size / Dimension | - | 3.5 mm |
| Size / Dimension | - | 0.1 " |
| Size / Dimension | - | 0.14 " |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 12-eMGA (3.5x3.5) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17572 | MAXM17572 |
| Voltage - Input (Max) | - | 60 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 60 V | 60 V |
| Voltage - Input [Min] | 7 V | 7 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output 1 | - | 0.9 V |
| Voltage - Output 1 | - | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.76 | |
MAXM17572 Series

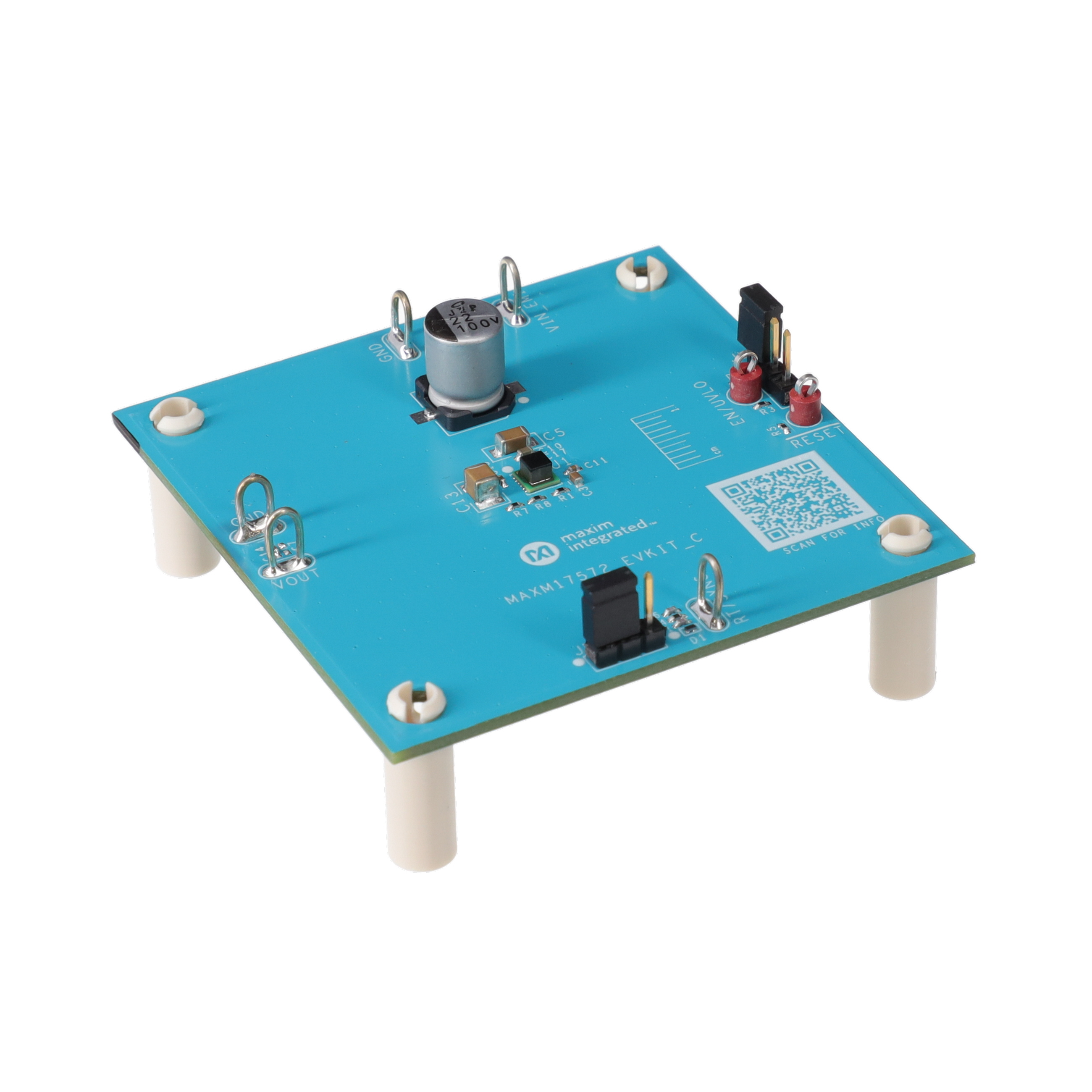

EVAL BOARD FOR MAXM17572
| Part | Supplied Contents | Board Type | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Voltage - Output | Regulator Topology | Current - Output | Outputs and Type | Outputs and Type | Main Purpose | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Mounting Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Supplier Device Package | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Applications | Features | Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17572EVKIT# | Board(s) | Fully Populated | 900 kHz | 60 V | 7 V | MAXM17572 | 5 V | Buck | 1 A | Non-Isolated | 1 | DC/DC, Step Down | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17572AMC+ | 60 V | 1 A | Surface Mount | 1 | 125 °C | -40 °C | 12-WFDFN Exposed Pad | 0.9 V | 12 V | 12-eMGA (3.5x3.5) | 0.14 " | 3.5 mm | 2.5 mm | 3.5 mm | 0.1 " | 0.14 " | 4.5 V | ITE (Commercial) | Adjustable Output, Remote On/Off | Non-Isolated PoL Module | |||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17572AMC+T | 60 V | 1 A | Surface Mount | 1 | 125 °C | -40 °C | 12-WFDFN Exposed Pad | 0.9 V | 12 V | 12-eMGA (3.5x3.5) | 0.14 " | 3.5 mm | 2.5 mm | 3.5 mm | 0.1 " | 0.14 " | 4.5 V | ITE (Commercial) | Adjustable Output, Remote On/Off | Non-Isolated PoL Module | 12 W |
Description
General part information
MAXM17572 Series
MAXM17572 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
