MAXM17572AMC+

Active

Analog Devices Inc./Maxim Integrated

4.5V-60V 1.2 A STEP-DOWN MOD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

4.5V-60V 1.2 A STEP-DOWN MOD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAXM17572AMC+	MAXM17572 Series

Applications	ITE (Commercial)	ITE (Commercial)
Board Type	-	Fully Populated
Current - Output	-	1 A
Current - Output (Max) [Max]	1 A	1 A
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output
Frequency - Switching	-	900 kHz
Main Purpose	-	DC/DC, Step Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	Non-Isolated
Outputs and Type	-	1

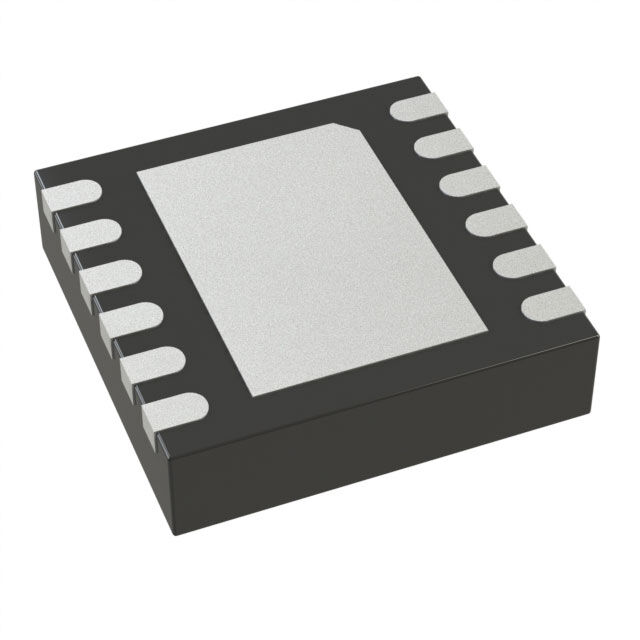

Package / Case	12-WFDFN Exposed Pad	12-WFDFN Exposed Pad
Power (Watts)	-	12 W
Regulator Topology	-	Buck
Size / Dimension [x]	0.14 "	0.14 "
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.14 "	0.14 "
Size / Dimension [z]	2.5 mm	2.5 mm
Size / Dimension [z]	0.1 "	0.1 "
Supplied Contents	-	Board(s)
Supplier Device Package	12-eMGA (3.5x3.5)	12-eMGA (3.5x3.5)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Utilized IC / Part	-	MAXM17572
Voltage - Input	-	60 V
Voltage - Input	-	7 V
Voltage - Input (Max) [Max]	60 V	60 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output	-	5 V
Voltage - Output 1 [Max]	12 V	12 V
Voltage - Output 1 [Min]	0.9 V	0.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

EVAL BOARD FOR MAXM17572

Part	Supplied Contents	Board Type	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Voltage - Output	Regulator Topology	Current - Output	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Applications	Features	Type	Power (Watts)
Analog Devices Inc./Maxim Integrated MAXM17572EVKIT#	Board(s)	Fully Populated	900 kHz	60 V	7 V	MAXM17572	5 V	Buck	1 A	Non-Isolated	1	DC/DC, Step Down
Analog Devices Inc./Maxim Integrated MAXM17572AMC+													60 V	1 A	Surface Mount	1	125 °C	-40 °C	12-WFDFN Exposed Pad	0.9 V	12 V	12-eMGA (3.5x3.5)	0.14 "	3.5 mm	2.5 mm	3.5 mm	0.1 "	0.14 "	4.5 V	ITE (Commercial)	Adjustable Output, Remote On/Off	Non-Isolated PoL Module
Analog Devices Inc./Maxim Integrated MAXM17572AMC+T													60 V	1 A	Surface Mount	1	125 °C	-40 °C	12-WFDFN Exposed Pad	0.9 V	12 V	12-eMGA (3.5x3.5)	0.14 "	3.5 mm	2.5 mm	3.5 mm	0.1 "	0.14 "	4.5 V	ITE (Commercial)	Adjustable Output, Remote On/Off	Non-Isolated PoL Module	12 W

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 12V 1A 4.5V - 60V Input
