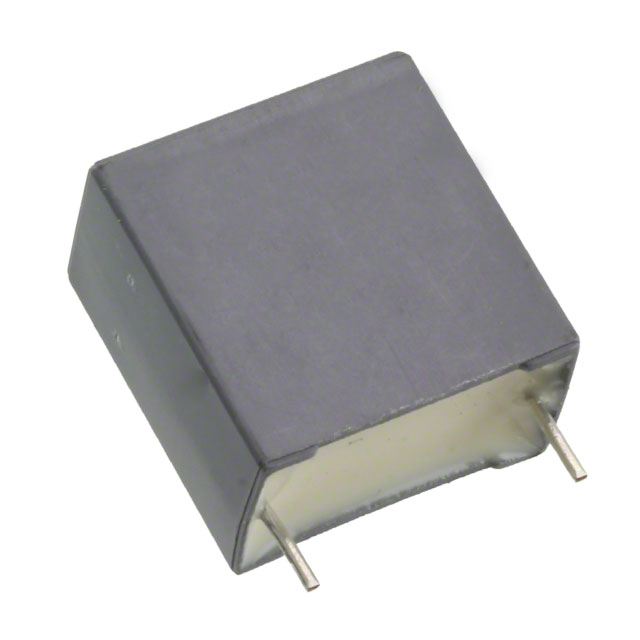

R46KI368000P0K

Active

KEMET

CAP FILM 0.68UF 10% 560VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +2

R46KI368000P0K

Active

KEMET

CAP FILM 0.68UF 10% 560VDC RAD

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R46KI368000P0K

Applications	EMI, RFI Suppression
Capacitance	680 nF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	0.709 ", 18 mm
Size / Dimension [y]	0.433 in, 11 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	275 V
Voltage Rating - DC	560 V

R46KI Series

Part	Tolerance	Mounting Type	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Ratings	Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage Rating - AC	Lead Spacing	Lead Spacing	Applications	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET R46KI368000P0K	10 %	Through Hole	680 nF	0.709 " 18 mm	0.433 in 11 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression
KEMET R46KI3470JPM1M	20 %	Through Hole	0.47 µF	0.709 " 18 mm	0.433 in 11 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression
KEMET R46KI315000M2K	10 %	Through Hole	0.15 ÁF	18 mm	6 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.236 in	12.1 mm	0.476 "
KEMET R46KI347040M1K	10 %	Through Hole	0.47 µF	0.709 " 18 mm	0.433 in 11 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression
KEMET R46KI31000001M	20 %	Through Hole	100000 pF	18 mm	5 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.197 "			0.437 in	11.1 mm
KEMET R46KI3470DQ02M	20 %	Through Hole	0.47 µF	18 mm	7.5 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.295 in	18.6 mm	0.732 in
KEMET R46KI333040P1K	10 %	Through Hole	0.33 µF	18 mm		560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.354 in	12.6 mm	0.496 "			9 mm
KEMET R46KI23300001K	10 %	Through Hole	0.033 çF	18 mm	5 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.197 "			0.437 in	11.1 mm
KEMET R46KI347000M1K	10 %	Through Hole	0.47 µF	0.709 " 18 mm	0.433 in 11 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression
KEMET R46KI347040P0M	20 %	Through Hole	0.47 µF	18 mm	8.5 mm	560 V	X2	PC Pins	Metallized Polypropylene (PP)	-40 °C	110 °C	Radial	275 V	15 mm	0.591 in	EMI RFI Suppression	0.709 in	0.335 in			0.575 in	14.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.68
		10	$ 0.51
		50	$ 0.46
		450	$ 0.31
Newark	Each	10	$ 0.56
		25	$ 0.54
		50	$ 0.52
		100	$ 0.49
		500	$ 0.47
		1000	$ 0.46

Description

General part information

R46KI Series

0.68 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
