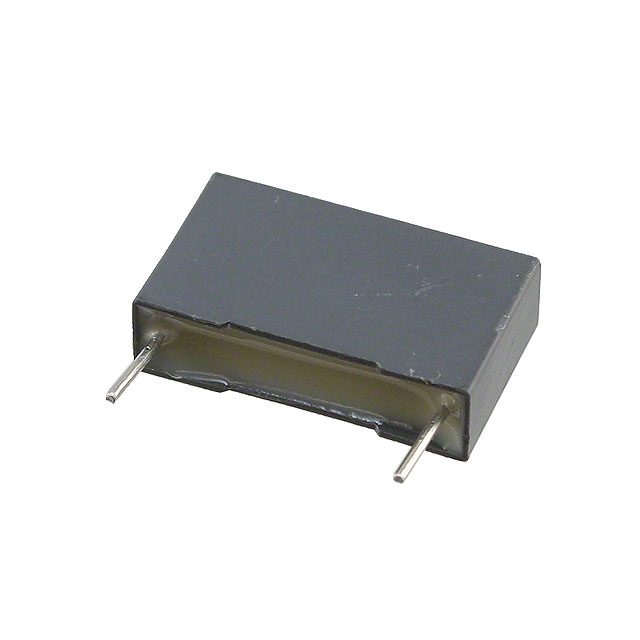

R46KI23300001K - R46 Series 18mm

R46KI23300001K

Active
KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.033 ΜF, ± 10%, X2, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetR46KI23300001K+4
R46KI23300001K - R46 Series 18mm

R46KI23300001K

Active
KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.033 ΜF, ± 10%, X2, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheetR46KI23300001K+4

Technical Specifications

Parameters and characteristics for this part

SpecificationR46KI23300001K
ApplicationsEMI, RFI Suppression
Capacitance0.033 çF
Dielectric MaterialMetallized, Polypropylene (PP)
Height - Seated (Max) [Max]0.437 in
Height - Seated (Max) [Max]11.1 mm
Lead Spacing15 mm
Lead Spacing0.591 in
Mounting TypeThrough Hole
Operating Temperature [Max]110 °C
Operating Temperature [Min]-40 °C
Package / CaseRadial
RatingsX2
Size / Dimension [x]18 mm
Size / Dimension [x]0.709 in
Size / Dimension [y]0.197 "
Size / Dimension [y]5 mm
TerminationPC Pins
Tolerance10 %
Voltage Rating - AC275 V
Voltage Rating - DC560 V

R46KI Series

PartToleranceMounting TypeCapacitanceSize / Dimension [x]Size / Dimension [y]Voltage Rating - DCRatingsTerminationDielectric MaterialOperating Temperature [Min]Operating Temperature [Max]Package / CaseVoltage Rating - ACLead SpacingLead SpacingApplicationsSize / Dimension [x]Size / Dimension [y]Height - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Height - Seated (Max) [Max]Height - Seated (Max) [Max]Size / Dimension [y]
KEMET
R46KI368000P0K
10 %
Through Hole
680 nF
0.709 "
18 mm
0.433 in
11 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
KEMET
R46KI3470JPM1M
20 %
Through Hole
0.47 µF
0.709 "
18 mm
0.433 in
11 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
KEMET
R46KI315000M2K
10 %
Through Hole
0.15 ÁF
18 mm
6 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
0.709 in
0.236 in
12.1 mm
0.476 "
KEMET
R46KI347040M1K
10 %
Through Hole
0.47 µF
0.709 "
18 mm
0.433 in
11 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
KEMET
R46KI31000001M
20 %
Through Hole
100000 pF
18 mm
5 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
0.709 in
0.197 "
0.437 in
11.1 mm
KEMET
R46KI3470DQ02M
20 %
Through Hole
0.47 µF
18 mm
7.5 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
0.709 in
0.295 in
18.6 mm
0.732 in
KEMET
R46KI333040P1K
10 %
Through Hole
0.33 µF
18 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
0.709 in
0.354 in
12.6 mm
0.496 "
9 mm
KEMET
R46KI23300001K
10 %
Through Hole
0.033 çF
18 mm
5 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
0.709 in
0.197 "
0.437 in
11.1 mm
KEMET
R46KI347000M1K
10 %
Through Hole
0.47 µF
0.709 "
18 mm
0.433 in
11 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
KEMET
R46KI347040P0M
20 %
Through Hole
0.47 µF
18 mm
8.5 mm
560 V
X2
PC Pins
Metallized
Polypropylene (PP)
-40 °C
110 °C
Radial
275 V
15 mm
0.591 in
EMI
RFI Suppression
0.709 in
0.335 in
0.575 in
14.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.58
10$ 0.39
100$ 0.26
2000$ 0.16
6000$ 0.15
10000$ 0.14
NewarkEach 1000$ 0.16
2500$ 0.14

Description

General part information

R46KI Series

The R46 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0. For worldwide use in electromagnetic interference (EMI) suppression in across-the-line applications requiring X2 safety classification. Intended for use in situations where capacitor failure would not result in exposure to electric shock. Not for use in "series with mains" type applications.
