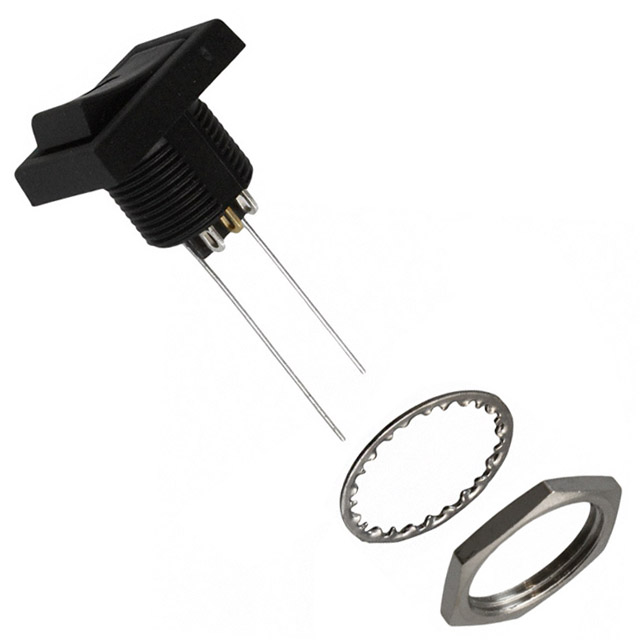

TRD13D10WLLR204

Active

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRD13D10WLLR204

Active

TE Connectivity Raychem Cable Protection

SWITCH ROCKER SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRD13D10WLLR204

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	20000 Steps
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.8 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

TRD13D Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Circuit	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Electrical Life	Illumination Type, Color	Illumination Voltage (Nominal)	Mechanical Life	Current Rating (Amps)	Actuator Type	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap
TE Connectivity Raychem Cable Protection TRD13D10WLLR25	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Solder Lug	On-On	11.9 mm	20000 Steps	Green/Red LED	2.8 VDC	100000 Cycles	3 A	Concave (Curved) - Illuminated	No Marking	125 V	Black
TE Connectivity Raychem Cable Protection TRD13D10QC04	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Quick Connect - 0.110" (2.8mm)	On-On	11.9 mm	20000 Steps			100000 Cycles	3 A	Concave (Curved)	No Marking	125 V	Black
TE Connectivity Raychem Cable Protection TRD13D12WL	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Solder Lug	On-On	11.9 mm	20000 Steps			100000 Cycles	3 A	Concave (Curved)	No Marking	125 V	Red
TE Connectivity Raychem Cable Protection TRD13D10WLLR204	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Solder Lug	On-On	11.9 mm	20000 Steps	LED Red	2.8 VDC	100000 Cycles	3 A	Concave (Curved) - Illuminated	No Marking	125 V	Black
TE Connectivity Raychem Cable Protection TRD13D10WLLR2	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Solder Lug	On-On	11.9 mm	20000 Steps	LED Red	2.8 VDC	100000 Cycles	3 A	Concave (Curved) - Illuminated	No Marking	125 V	Black
TE Connectivity Raychem Cable Protection TRD13D10WLLR5	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Solder Lug	On-On	11.9 mm	20000 Steps	Green LED	2.8 VDC	100000 Cycles	3 A	Concave (Curved) - Illuminated	No Marking	125 V	Black
TE Connectivity Raychem Cable Protection TRD13D10WL	-20 C	80 C	Panel Mount Threaded Body with Nut	SPDT	Solder Lug	On-On	11.9 mm	20000 Steps			100000 Cycles	3 A	Concave (Curved)	No Marking	125 V	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.96
		10	$ 17.22
		25	$ 16.45
		50	$ 15.57
		100	$ 14.99
		250	$ 14.03
		500	$ 11.97

Description

General part information

TRD13D Series

Rocker Switch SPDT 3A (AC) 125 V Panel Mount, Threaded Body with Nut
