TRD13D10QC04
ActiveTE Connectivity Raychem Cable Protection

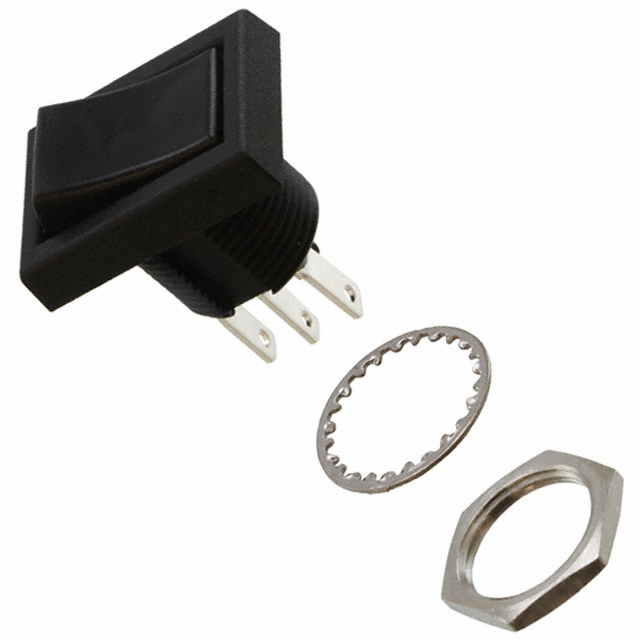

TRD13D10QC04 ROCKER SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRD13D10QC04 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 20000 Steps |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Threaded Body with Nut |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 11.9 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.58 | |
| 10 | $ 9.99 | |||
| 25 | $ 9.42 | |||
| 50 | $ 9.01 | |||
| 100 | $ 8.62 | |||
| 250 | $ 8.13 | |||
| 500 | $ 7.77 | |||
| 1000 | $ 7.43 | |||
Description
General part information
ALCOSWITCH TRD Series
Power Rocker Switch, 11.3 x 12.06 mm [.445 x .475 in] Panel Cutout, Silver Contact Plating, ALCOSWITCH TRD
