EZ-195/200-NF-X

Active

Amphenol Times Microwave Systems

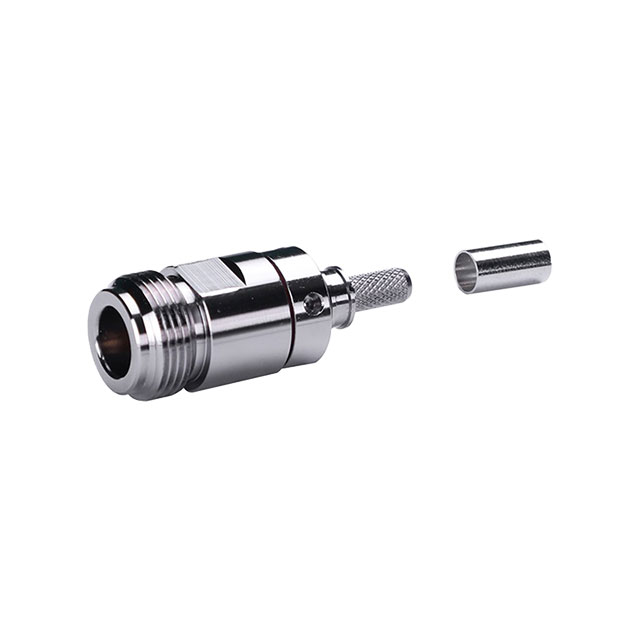

N-FEMALE (JACK) CRIMP CONNECTOR,

Deep-Dive with AI

Search across all available documentation for this part.

EZ-195/200-NF-X

Active

Amphenol Times Microwave Systems

N-FEMALE (JACK) CRIMP CONNECTOR,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 27.58
		10	$ 24.15
		25	$ 23.11
		50	$ 22.36
		100	$ 21.62
		250	$ 20.42
		500	$ 19.83

Description

General part information

EZ-195 Series

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-195/200-NF-X	EZ-195 Series

	-	-
Body Finish	-	Tin, White Bronze
Body Material	-	Brass
Cable Group	LMR-200, LMR-195	LMR-200, LMR-195
Center Contact Material	-	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold, Silver
Connector Style	7/16 DIN	QN, SMA, TNC, UHF, 7/16 DIN, 4.3/10, BNC, N Type, RP-TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Crimp, Push On, Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM)
Fastening Type	-	Snap-On, Bayonet Lock
Frequency - Max [Max]	7.5 GHz	3 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Connector, 1 Ferrule	1 Connector, 1 Ferrule
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	1000 VDC

EZ-195 Series

QMA-FEMALE (PLUG) CRIMP CONNECTO

Part	Shield Termination	Number of Ports	Center Contact Plating	Includes	Mounting Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Center Contact Material	Body Finish	Cable Group	Connector Style	Body Material	Frequency - Max [Max]	Connector Type	Impedance	Contact Termination	Mating Cycles	Mounting Feature	Fastening Type
Amphenol Times Microwave Systems EZ-195-QF-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	QN	Brass	6000 MHz	Male Pin, Plug	50 Ohms	Crimp
Amphenol Times Microwave Systems EZ-195-SM-RA-X	Crimp												SMA			Male Pin, Plug		Crimp
Amphenol Times Microwave Systems EZ-195/200-TF-BH-X	Crimp	1	Gold			Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	TNC	Brass	8 GHz	Female Socket, Jack	50 Ohms	Push On	500	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems EZ-195/200-QNM-RA-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	QN	Brass	6000 MHz	Female Socket, Jack	50 Ohms	Crimp			Snap-On
Amphenol Times Microwave Systems EZ-195/200-TM-RA-X
Amphenol Times Microwave Systems EZ-195/200-UM-RA-X	Crimp	1	Silver		Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Phosphor Bronze	Tin	LMR-195, LMR-200	UHF	Brass	3 GHz	Male Pin, Plug	50 Ohms	Solder	500
Amphenol Times Microwave Systems EZ-195/200-NF-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)		85 °C	-40 °C	Silver			LMR-195, LMR-200	7/16 DIN		7.5 GHz	Male Pin, Plug	50 Ohms	Crimp
Amphenol Times Microwave Systems EZ-195/200-UM-X	Crimp	1	Silver		Free Hanging (In-Line)	Polyoxymethylene (POM)	125 °C	-40 °C	Silver	Phosphor Bronze	Tin	LMR-195, LMR-200	UHF	Brass	3 GHz	Male Pin, Plug	50 Ohms	Push On	500
Amphenol Times Microwave Systems EZ-195/200-4310M-RA-X	Clamp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line)		85 °C	-40 °C	Silver			LMR-195, LMR-200	4.3/10		6000 MHz	Male Pin, Plug	50 Ohms	Crimp
Amphenol Times Microwave Systems EZ-195/200-QNM-X	Crimp	1	Gold	1 Connector, 1 Ferrule	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Silver	Beryllium Copper	Tin	LMR-195, LMR-200	QN	Brass	6000 MHz	Male Pin, Plug	50 Ohms	Crimp
