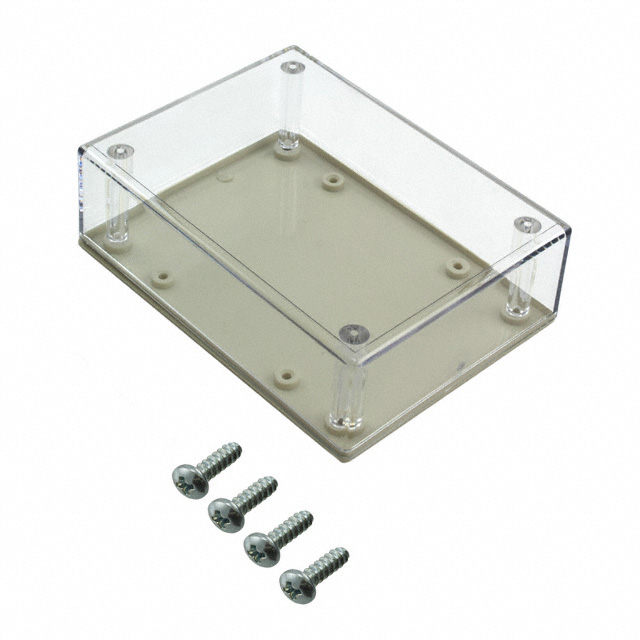

032C,AL

Active

Serpac

BOX PLSTC AMD/CL 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX PLSTC AMD/CL 4.38"L X 3.25"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Almond, Clear Cover/Door Hand Held, Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.400" (35.56mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	032C,AL	032 Series

Area (L x W)	92 cm˛	92 cm˛
Area (L x W)	14.2 in²	14.2 in²
Color	-	Black, Clear Cover/Door, Gray, Almond
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports, Wall Mount
Height [z]	35.56 mm	35.56 mm
Height [z]	1.4 in	1.4 in
Material	Plastic, Polycarbonate	Plastic, Polycarbonate, Plastic, ABS
Material Flammability Rating	-	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.18 lb	0.18 lb
Weight	81.65 g	81.65 g

BOX PLAS BLK/CLR 4.38"L X 3.25"W

Part	Features	Weight	Weight	Thickness	Thickness	Color	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Container Type	Material	Ratings	Material Flammability Rating	Design
Serpac 032C,BK	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Black, Clear Cover/Door	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, Polycarbonate	IP40, NEMA 1
Serpac 032,BK	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB
Serpac 032C,GY	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Clear Cover/Door, Gray	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, Polycarbonate	IP40, NEMA 1
Serpac 032W,BK	PCB Supports, Wall Mount	0.18 lb	81.65 g	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB	Cover Included, Hand Held
Serpac 032,AL	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB
Serpac 032C,AL	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in		14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, Polycarbonate	IP40, NEMA 1		Cover Included, Hand Held
Serpac 032W,GY	PCB Supports, Wall Mount	0.18 lb	81.65 g	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB
Serpac 032,GY	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB	Cover Included, Hand Held
Serpac 032W,AL	PCB Supports, Wall Mount	0.18 lb	81.65 g	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB	Cover Included, Hand Held
