032,GY

Active

Serpac

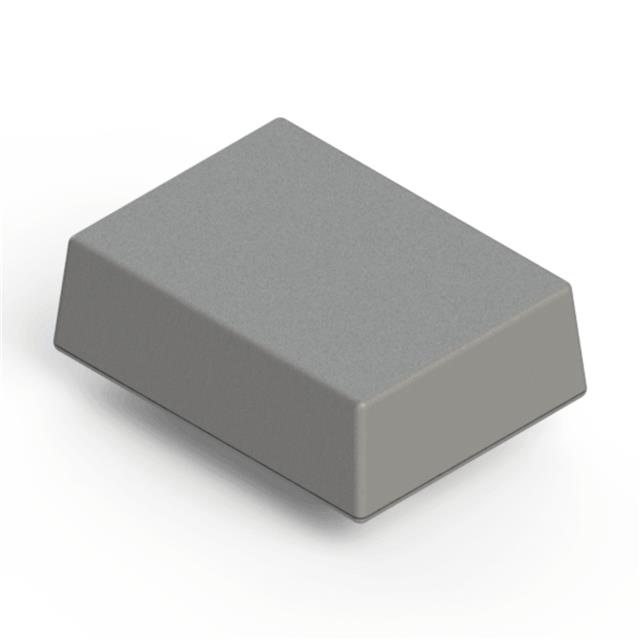

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Cover Included 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.400" (35.56mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	032,GY	032 Series

Area (L x W)	92 cm˛	92 cm˛
Area (L x W)	14.2 in²	14.2 in²
Color	Gray	Black, Clear Cover/Door, Gray, Almond
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports, Wall Mount
Height [z]	35.56 mm	35.56 mm
Height [z]	1.4 in	1.4 in
Material	Plastic, ABS	Plastic, Polycarbonate, Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.18 lb	0.18 lb
Weight	81.65 g	81.65 g

BOX PLAS BLK/CLR 4.38"L X 3.25"W

Part	Features	Weight	Weight	Thickness	Thickness	Color	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Container Type	Material	Ratings	Material Flammability Rating	Design
Serpac 032C,BK	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Black, Clear Cover/Door	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, Polycarbonate	IP40, NEMA 1
Serpac 032,BK	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB
Serpac 032C,GY	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Clear Cover/Door, Gray	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, Polycarbonate	IP40, NEMA 1
Serpac 032W,BK	PCB Supports, Wall Mount	0.18 lb	81.65 g	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB	Cover Included, Hand Held
Serpac 032,AL	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB
Serpac 032C,AL	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in		14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, Polycarbonate	IP40, NEMA 1		Cover Included, Hand Held
Serpac 032W,GY	PCB Supports, Wall Mount	0.18 lb	81.65 g	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB
Serpac 032,GY	PCB Supports	0.18 lb	81.65 g	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB	Cover Included, Hand Held
Serpac 032W,AL	PCB Supports, Wall Mount	0.18 lb	81.65 g	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	35.56 mm	1.4 in	Box	Plastic, ABS	IP40, NEMA 1	UL94 HB	Cover Included, Hand Held
