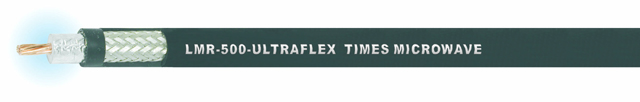

LMR-500-ULTRAFLEX

Active

Amphenol Times Microwave Systems

LMR-500 CABLE/STRANDED CENTER CO

Deep-Dive with AI

Search across all available documentation for this part.

LMR-500-ULTRAFLEX

Active

Amphenol Times Microwave Systems

LMR-500 CABLE/STRANDED CENTER CO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.88

Description

General part information

LMR-500 Series

Coaxial Cable 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-500-ULTRAFLEX	LMR-500 Series

Cable Type	Coaxial	Coaxial, Coaxial - Riser, Coaxial - Plenum
Conductor Material	Copper, Bare	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	-	Solid
Dielectric Diameter [diameter]	0.37 "	0.37 "
Dielectric Diameter [diameter]	9.4 mm	9.4 mm
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	-	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	12.7 mm	11.81 - 12.7 mm
Jacket (Insulation) Diameter [diameter]	0.5 in	0.465 - 0.5 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Polyethylene (PE), Polyethylene (PE), Riser, Fluoropolymer, Plenum, Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black, Red
Length	-	15.24 - 76.2 m
Length	-	50 - 3000 ft
Length	-	100 ft
Length	-	30.48 m
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Foil, Braid
VoP, Velocity of Propagation	85	76 - 85

LMR-500 Series

LMR-500 STANDARD CABLE, BLACK PE

Part	Shield Type	Dielectric Material	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Impedance	Jacket (Insulation) Material	Shield Material	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Conductor Strand	Cable Type	Features
Amphenol Times Microwave Systems LMR-500	Braid, Foil	Foam Polyethylene (FPE)	Aluminum, Copper Coated	85 °C	-40 °C	12.7 mm	0.5 in	15.24 m, 76.2 m	50 ft, 3000 "	50 Ohms	Polyethylene (PE)	Aluminum, Copper, Tinned	82	0.37 "	9.4 mm	Black	100 ft	30.48 m	Solid	Coaxial
Amphenol Times Microwave Systems LMR-500-FR	Braid	Foam Polyethylene (FPE)	Aluminum, Copper Coated	85 °C	-40 °C	12.7 mm	0.5 in			50 Ohms	Polyethylene (PE), Riser	Aluminum, Copper, Tinned	82	0.37 "	9.4 mm	Black			Solid	Coaxial - Riser	Fire Retardant
Amphenol Times Microwave Systems LMR-500-DB	Braid	Foam Polyethylene (FPE)	Aluminum, Copper Coated	85 °C	-40 °C	12.7 mm	0.5 in			50 Ohms	Polyethylene (PE)	Aluminum, Copper, Tinned	82	0.37 "	9.4 mm	Black			Solid	Coaxial	Direct Burial, Watertight
Amphenol Times Microwave Systems LMR-500-LLPX	Braid	Polytetrafluoroethylene (PTFE)	Aluminum, Copper Coated	125 °C	-40 °C	11.81 mm	0.465 in			50 Ohms	Fluoropolymer, Plenum	Aluminum, Copper, Tinned	76	0.37 "	9.4 mm	Red			Solid	Coaxial - Plenum
Amphenol Times Microwave Systems LMR-500-ULTRAFLEX	Braid	Foam Polyethylene (FPE)	Copper, Bare	85 °C	-40 °C	12.7 mm	0.5 in			50 Ohms	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	85	0.37 "	9.4 mm	Black				Coaxial
