LMR-500-LLPX

Active

Amphenol Times Microwave Systems

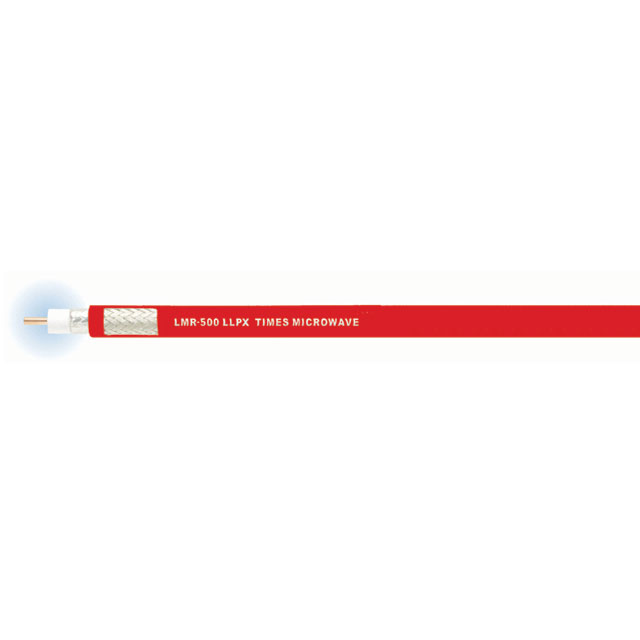

LMR-500 LOW LOSS PLENUM, LISTED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-500-LLPX

Active

Amphenol Times Microwave Systems

LMR-500 LOW LOSS PLENUM, LISTED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 6077.99

Description

General part information

LMR-500 Series

Coaxial - Plenum Cable 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-500-LLPX	LMR-500 Series

Cable Type	Coaxial - Plenum	Coaxial, Coaxial - Riser, Coaxial - Plenum
Conductor Material	Aluminum, Copper Coated	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	0.37 "	0.37 "
Dielectric Diameter [diameter]	9.4 mm	9.4 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	-	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	11.81 mm	11.81 - 12.7 mm
Jacket (Insulation) Diameter [diameter]	0.465 in	0.465 - 0.5 in
Jacket (Insulation) Material	Fluoropolymer, Plenum	Polyethylene (PE), Polyethylene (PE), Riser, Fluoropolymer, Plenum, Thermoplastic Elastomer (TPE)
Jacket Color	Red	Black, Red
Length	-	15.24 - 76.2 m
Length	-	50 - 3000 ft
Length	-	100 ft
Length	-	30.48 m
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Foil, Braid
VoP, Velocity of Propagation	76	76 - 85

LMR-500 Series

LMR-500 STANDARD CABLE, BLACK PE

Part	Shield Type	Dielectric Material	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Impedance	Jacket (Insulation) Material	Shield Material	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Conductor Strand	Cable Type	Features
Amphenol Times Microwave Systems LMR-500	Braid, Foil	Foam Polyethylene (FPE)	Aluminum, Copper Coated	85 °C	-40 °C	12.7 mm	0.5 in	15.24 m, 76.2 m	50 ft, 3000 "	50 Ohms	Polyethylene (PE)	Aluminum, Copper, Tinned	82	0.37 "	9.4 mm	Black	100 ft	30.48 m	Solid	Coaxial
Amphenol Times Microwave Systems LMR-500-FR	Braid	Foam Polyethylene (FPE)	Aluminum, Copper Coated	85 °C	-40 °C	12.7 mm	0.5 in			50 Ohms	Polyethylene (PE), Riser	Aluminum, Copper, Tinned	82	0.37 "	9.4 mm	Black			Solid	Coaxial - Riser	Fire Retardant
Amphenol Times Microwave Systems LMR-500-DB	Braid	Foam Polyethylene (FPE)	Aluminum, Copper Coated	85 °C	-40 °C	12.7 mm	0.5 in			50 Ohms	Polyethylene (PE)	Aluminum, Copper, Tinned	82	0.37 "	9.4 mm	Black			Solid	Coaxial	Direct Burial, Watertight
Amphenol Times Microwave Systems LMR-500-LLPX	Braid	Polytetrafluoroethylene (PTFE)	Aluminum, Copper Coated	125 °C	-40 °C	11.81 mm	0.465 in			50 Ohms	Fluoropolymer, Plenum	Aluminum, Copper, Tinned	76	0.37 "	9.4 mm	Red			Solid	Coaxial - Plenum
Amphenol Times Microwave Systems LMR-500-ULTRAFLEX	Braid	Foam Polyethylene (FPE)	Copper, Bare	85 °C	-40 °C	12.7 mm	0.5 in			50 Ohms	Thermoplastic Elastomer (TPE)	Aluminum, Copper, Tinned	85	0.37 "	9.4 mm	Black				Coaxial
