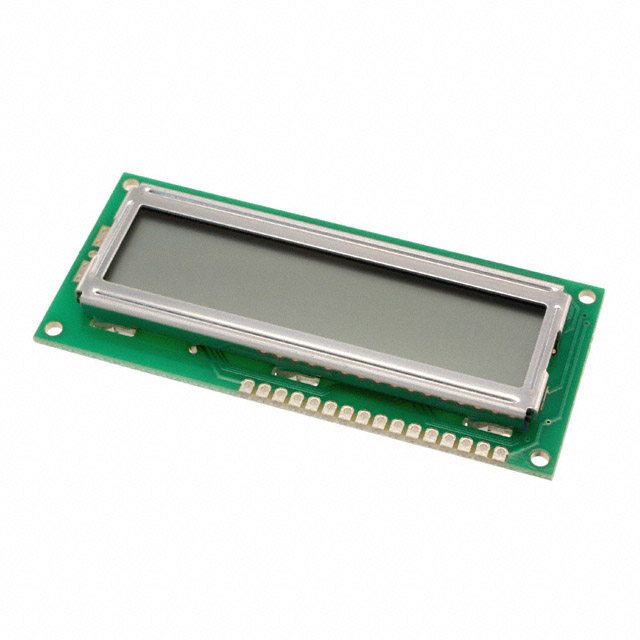

LCM-S01601DTR

Active

Lumex Opto/Components Inc.

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCM-S01601DTR	LCM-S01601 Series

Background Color	Green	Green
Backlight	Without Backlight	Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	3.07 mm	3.07 mm
Character Size [z]	6.56 mm	6.56 mm
Display Format [x]	16	16
Display Format [y]	1	1
Display Mode	Reflective	Reflective, Transflective
Display Type	TN - Twisted Nematic	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [x]	0.55 mm	0.55 mm
Dot Size [y]	0.75 mm	0.75 mm
Interface	Parallel	Parallel
Number of Characters	16	16
Outline L x W x H [x]	80 mm	80 mm
Outline L x W x H [y]	36 mm	36 mm
Outline L x W x H [z]	8.8 mm	8.8 - 12.7 mm
Viewing Area [x]	66 mm	66 mm
Viewing Area [y]	16 mm	16 mm
Voltage - Supply	-	4.7 V
Voltage - Supply	-	5.3 V

LCD MODULE 16X1 CHAR RFL STN

Part	Display Format [x]	Display Format [y]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Format [y]	Character Format [x]	Backlight	Viewing Area [x]	Viewing Area [y]	Display Mode	Dot Size [y]	Dot Size [x]	Interface	Background Color	Display Type	Character Size [z]	Character Size [y]
Lumex Opto/Components Inc. LCM-S01601DSR/D	16	1	36 mm	80 mm	8.8 mm	16	4.7 V	5.3 V	8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm
Lumex Opto/Components Inc. LCM-S01601DSR	16	1	36 mm	80 mm	8.8 mm	16			8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm	Parallel	Green	STN - Super-Twisted Nematic	6.56 mm	3.07 mm
Lumex Opto/Components Inc. LCM-S01601DTR	16	1	36 mm	80 mm	8.8 mm	16			8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm	Parallel	Green	TN - Twisted Nematic	6.56 mm	3.07 mm
Lumex Opto/Components Inc. LCM-S01601DSF	16	1	36 mm	80 mm	12.7 mm	16			8 Dots	5 Dots		66 mm	16 mm	Transflective	0.75 mm	0.55 mm	Parallel	Green	STN - Super-Twisted Nematic	6.56 mm	3.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel 80.00mm x 36.00mm x 8.80mm
