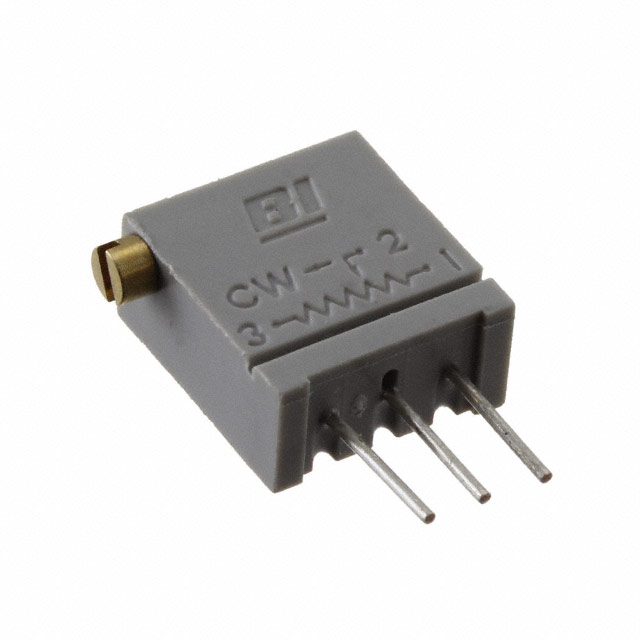

67XR5KLFTB

Active

TT Electronics/BI

TRIMMER 5K OHM 0.5W PC PIN SIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

67XR5KLFTB

Active

TT Electronics/BI

TRIMMER 5K OHM 0.5W PC PIN SIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	67XR5KLFTB

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	20
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	5 kOhms
Resistive Material	Cermet
Size / Dimension [x]	9.53 mm, 0.375 in
Size / Dimension [y]	0.195 in, 4.95 mm
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

67XR Series

Part	Resistive Material	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Number of Turns	Adjustment Type	Power (Watts)	Power (Watts)	Mounting Type	Termination Style	Resistance	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI 67XR500KLF	Cermet	10 %	0.195 in 4.95 mm	0.437 in 11.1 mm	100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins
TT Electronics/BI 67XR50LF	Cermet	20 %	0.195 in 4.95 mm	0.437 in 11.1 mm	250 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	50 Ohms
TT Electronics/BI 67XR1KLFTB	Cermet	10 %	0.195 in 4.95 mm	0.437 in 11.1 mm	100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	1000 Ohms
TT Electronics/BI 67XR5KLFTB	Cermet	10 %			100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	5 kOhms	0.195 in 4.95 mm	0.375 in 9.53 mm
TT Electronics/BI 67XR2MEGLFTB	Cermet	10 %	0.195 in 4.95 mm	0.437 in 11.1 mm	100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	2 MOhms
TT Electronics/BI 67XR50KLF	Cermet	10 %			100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	50 kOhms	0.195 in 4.95 mm	0.375 in 9.53 mm
TT Electronics/BI 67XR20KLFTB	Cermet	10 %			100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	20 kOhms	0.195 in 4.95 mm	0.375 in 9.53 mm
TT Electronics/BI 67XR1MEGLF	Cermet	10 %	0.195 in 4.95 mm	0.437 in 11.1 mm	100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	1 MOhms
TT Electronics/BI 67XR10LFTB	Cermet	20 %	0.195 in 4.95 mm	0.437 in 11.1 mm	250 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	10 Ohms
TT Electronics/BI 67XR200LF	Cermet	10 %			100 ppm/°C	20	Side Adjustment	0.5 W	0.5 W	Through Hole	PC Pins	200 Ohms	0.195 in 4.95 mm	0.375 in 9.53 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.84
		10	$ 1.48
		25	$ 1.36
		50	$ 1.27
		100	$ 1.19
		250	$ 1.09
		500	$ 1.02
		1000	$ 0.95
		5000	$ 0.81

Description

General part information

67XR Series

5 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 20.0 Turn Side Adjustment
