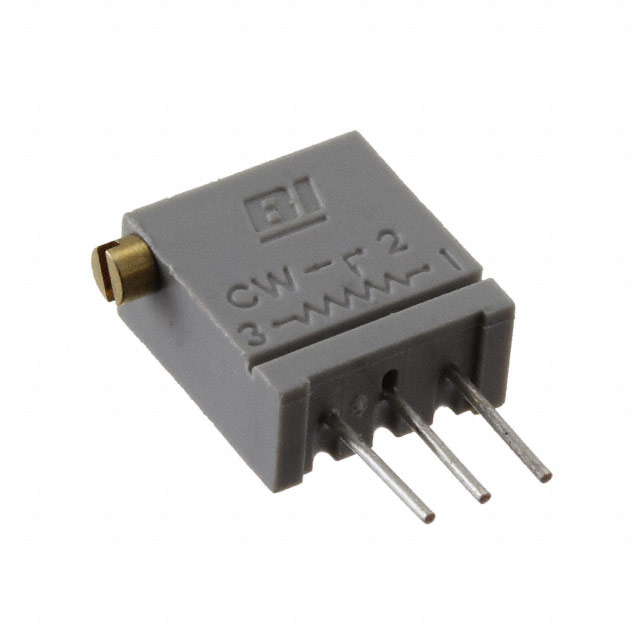

67XR50KLF
ActiveTT Electronics/BI
TRIMMER 50K OHM 0.5W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
67XR50KLF
ActiveTT Electronics/BI
TRIMMER 50K OHM 0.5W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 67XR50KLF |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 20 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 50 kOhms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 9.53 mm, 0.375 in |
| Size / Dimension [y] | 0.195 in, 4.95 mm |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
67XR Series
| Part | Resistive Material | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Temperature Coefficient | Number of Turns | Adjustment Type | Power (Watts) | Power (Watts) | Mounting Type | Termination Style | Resistance | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI | Cermet | 10 % | 0.195 in 4.95 mm | 0.437 in 11.1 mm | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | |||
TT Electronics/BI | Cermet | 20 % | 0.195 in 4.95 mm | 0.437 in 11.1 mm | 250 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 50 Ohms | ||
TT Electronics/BI | Cermet | 10 % | 0.195 in 4.95 mm | 0.437 in 11.1 mm | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 1000 Ohms | ||
TT Electronics/BI | Cermet | 10 % | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 5 kOhms | 0.195 in 4.95 mm | 0.375 in 9.53 mm | ||
TT Electronics/BI | Cermet | 10 % | 0.195 in 4.95 mm | 0.437 in 11.1 mm | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 2 MOhms | ||
TT Electronics/BI | Cermet | 10 % | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 50 kOhms | 0.195 in 4.95 mm | 0.375 in 9.53 mm | ||
TT Electronics/BI | Cermet | 10 % | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 20 kOhms | 0.195 in 4.95 mm | 0.375 in 9.53 mm | ||
TT Electronics/BI | Cermet | 10 % | 0.195 in 4.95 mm | 0.437 in 11.1 mm | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 1 MOhms | ||
TT Electronics/BI | Cermet | 20 % | 0.195 in 4.95 mm | 0.437 in 11.1 mm | 250 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 10 Ohms | ||
TT Electronics/BI | Cermet | 10 % | 100 ppm/°C | 20 | Side Adjustment | 0.5 W | 0.5 W | Through Hole | PC Pins | 200 Ohms | 0.195 in 4.95 mm | 0.375 in 9.53 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.93 | |
| 10 | $ 1.70 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 1.05 | |||
| 5000 | $ 0.88 | |||
Description
General part information
67XR Series
50 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 20.0 Turn Side Adjustment
