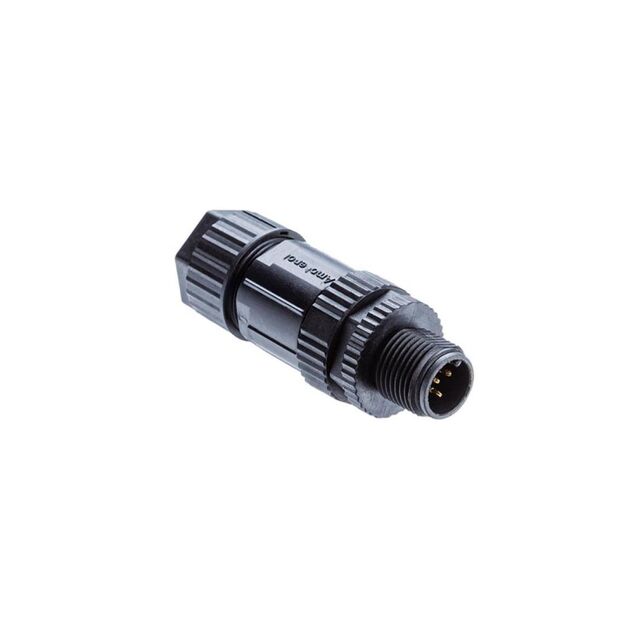

MSAP-08BMMA-SL8001

Active

Amphenol LTW

CONN RCPT MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Termination	Features	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Color	Backshell Material, Plating	Ingress Protection	Primary Material	Connector Type	Contact Finish - Mating	Shielding	Contact Material	Mounting Type	Orientation	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol LTW MSAP-08BMMA-SR7001	30 VAC	-40 °C	105 ░C	Thermoplastic	4.5 mm 6.5 mm	0.177 in 0.256 in	M12-8	Screw	Backshell Coupling Nut	UL94 V-0	4 A	8	Black	Thermoplastic	IP67 - Dust Tight Waterproof	Plastic	Male Pins Plug	Gold	Unshielded	Copper Alloy	Free Hanging (In-Line) Right Angle	A
Amphenol LTW MSAP-08BMMA-SL8001	30 VDC	-40 °C	105 ░C	Nylon Polyamide (PA)			M12-8		Backshell			8	Black	Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Plastic	Male Pins Receptacle	Gold	Unshielded	Copper Alloy	Free Hanging (In-Line)	A	4 mm	0.315 in	0.157 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder Cup
