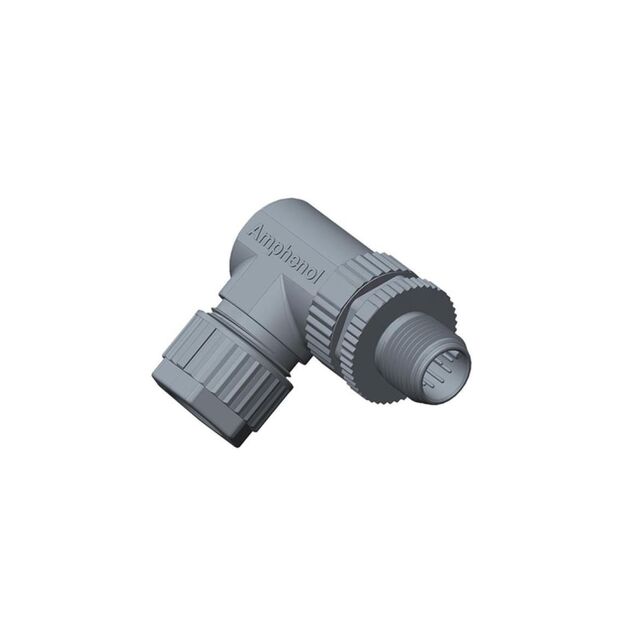

MSAP-08BMMA-SR7001

Active

Amphenol LTW

M SERIES, M12, 4A, 03 PINS, FIEL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 4A, 03 PINS, FIEL

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-08BMMA-SR7001

Backshell Material, Plating	Thermoplastic
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Screw
Voltage Rating	30 VAC

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Termination	Features	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Color	Backshell Material, Plating	Ingress Protection	Primary Material	Connector Type	Contact Finish - Mating	Shielding	Contact Material	Mounting Type	Orientation	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol LTW MSAP-08BMMA-SR7001	30 VAC	-40 °C	105 ░C	Thermoplastic	4.5 mm 6.5 mm	0.177 in 0.256 in	M12-8	Screw	Backshell Coupling Nut	UL94 V-0	4 A	8	Black	Thermoplastic	IP67 - Dust Tight Waterproof	Plastic	Male Pins Plug	Gold	Unshielded	Copper Alloy	Free Hanging (In-Line) Right Angle	A
Amphenol LTW MSAP-08BMMA-SL8001	30 VDC	-40 °C	105 ░C	Nylon Polyamide (PA)			M12-8		Backshell			8	Black	Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	Plastic	Male Pins Receptacle	Gold	Unshielded	Copper Alloy	Free Hanging (In-Line)	A	4 mm	0.315 in	0.157 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Screw
