CIRBP18LBN
ActiveTE Connectivity AMP Connectors

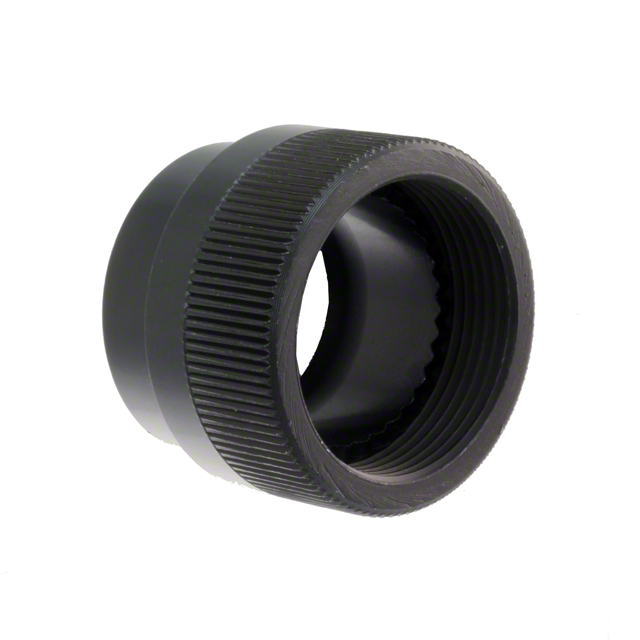

CONN BACKNUT 18 BLACK
Deep-Dive with AI
Search across all available documentation for this part.
CIRBP18LBN
ActiveTE Connectivity AMP Connectors
CONN BACKNUT 18 BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRBP18LBN | CIRBP18 Series |
|---|---|---|
| Accessory Type | Backnut | Backnut |
| Cable Exit | - | 180 ° |
| Color | Black | Black |
| Diameter - Outside | - | 1.22 in |
| Diameter - Outside | - | 30.99 mm |
| For Use With/Related Products | CIRP Series Circular Connectors | CIRP Series Circular Connectors |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | - | Zinc Cobalt |
| Shell Size - Insert | 18 | 18 |
| Shielding | - | Unshielded |
| Thread Size | - | 1-20 UNEF-2B |
| Type | - | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.01 | |
| 10 | $ 10.79 | |||
| 30 | $ 10.50 | |||
| 50 | $ 10.10 | |||
CIRBP18 Series
CONN BACKSHLL ADP SZ18 BLK 1-20
| Part | Material | Cable Exit | Type | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Thread Size | For Use With/Related Products | Ingress Protection | Shielding | Plating | Shell Size - Insert | Accessory Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRBP18SCHSA | Aluminum Alloy | 180 ° | Backshell, Heat Shrink Adapter | 1.22 in | 30.99 mm | 1-20 UNEF-2B | CIRP Series Circular Connectors | IP67 - Dust Tight, Waterproof | Unshielded | Zinc Cobalt | 18 | ||
TE Connectivity AMP Connectors CIRBP18LBN | Aluminum Alloy | CIRP Series Circular Connectors | 18 | Backnut | Black |
Description
General part information
CIRBP18 Series
Connector Backnut 18 Black
Documents
Technical documentation and resources
No documents available
