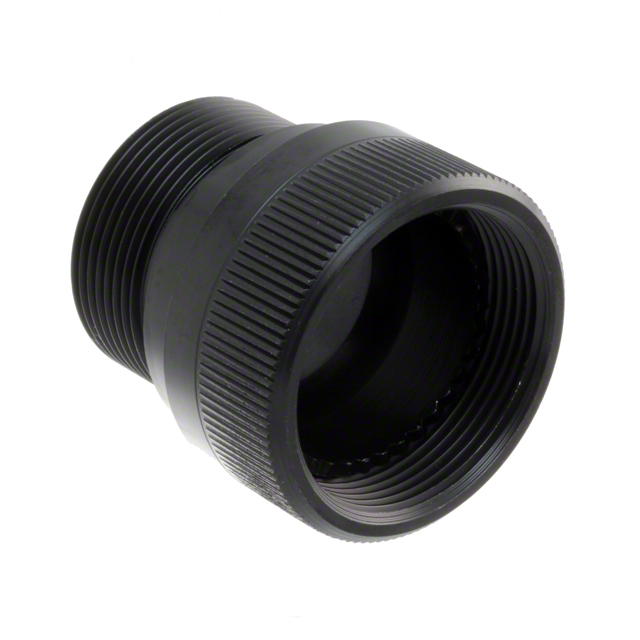

CIRBP18SCHSA

Active

TE Connectivity AMP Connectors

CONN BACKSHLL ADP SZ18 BLK 1-20

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BACKSHLL ADP SZ18 BLK 1-20

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CIRBP18SCHSA	CIRBP18 Series

Accessory Type	-	Backnut
Cable Exit	180 °	180 °
Color	-	Black
Diameter - Outside [diameter]	1.22 in	1.22 in
Diameter - Outside [diameter]	30.99 mm	30.99 mm
For Use With/Related Products	CIRP Series Circular Connectors	CIRP Series Circular Connectors
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material	Aluminum Alloy	Aluminum Alloy
Plating	Zinc Cobalt	Zinc Cobalt
Shell Size - Insert	18	18
Shielding	Unshielded	Unshielded
Thread Size	1-20 UNEF-2B	1-20 UNEF-2B
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN BACKSHLL ADP SZ18 BLK 1-20

Part	Material	Cable Exit	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Thread Size	For Use With/Related Products	Ingress Protection	Shielding	Plating	Shell Size - Insert	Accessory Type	Color
TE Connectivity AMP Connectors CIRBP18SCHSA	Aluminum Alloy	180 °	Backshell, Heat Shrink Adapter	1.22 in	30.99 mm	1-20 UNEF-2B	CIRP Series Circular Connectors	IP67 - Dust Tight, Waterproof	Unshielded	Zinc Cobalt	18
TE Connectivity AMP Connectors CIRBP18LBN	Aluminum Alloy						CIRP Series Circular Connectors				18	Backnut	Black

General part information

Black, Gray Connector Backshell, Heat Shrink Adapter 1-20 UNEF-2B 18
