INA105AM
ActiveTexas Instruments

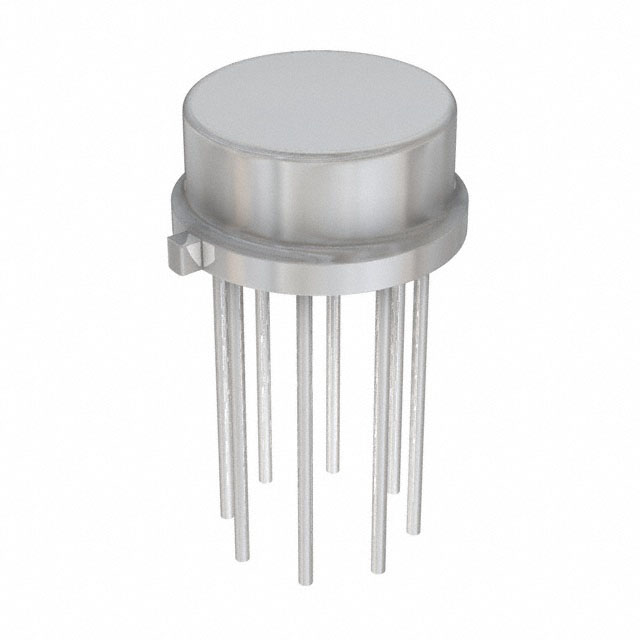

OPERATIONAL AMPLIFIER, 1 FUNC, 250UV OFFSET-MAX, BIPOLAR, MBCY8, HERMETIC SEALED, METAL CAN, TO-99
Deep-Dive with AI
Search across all available documentation for this part.
INA105AM
ActiveTexas Instruments
OPERATIONAL AMPLIFIER, 1 FUNC, 250UV OFFSET-MAX, BIPOLAR, MBCY8, HERMETIC SEALED, METAL CAN, TO-99
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | INA105AM | INA105 Series |
|---|---|---|
| -3db Bandwidth | 1 MHz | 1 MHz |
| Amplifier Type | Differential | Differential |
| Current - Output / Channel | 20 mA | 20 mA |
| Current - Supply | 1.5 mA | 1.5 mA |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | TO-99-8 Metal Can | 8-DIP, TO-99-8 Metal Can, 8-SOIC |
| Package / Case | - | 0.3 - 3.9 in |
| Package / Case | - | 7.62 mm |
| Slew Rate | 3 V/µs | 3 V/µs |
| Supplier Device Package | TO-99-8 | 8-PDIP, TO-99-8, 8-SOIC |
| Voltage - Input Offset | 50 µV | 50 µV |
| Voltage - Supply Span (Max) [Max] | 36 V | 36 V |
| Voltage - Supply Span (Min) [Min] | 10 V | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
INA105 Series
Precision Unity Gain Differential Amplifier
| Part | -3db Bandwidth | Supplier Device Package | Package / Case | Package / Case | Package / Case | Current - Supply | Voltage - Supply Span (Min) [Min] | Current - Output / Channel | Voltage - Supply Span (Max) [Max] | Mounting Type | Number of Circuits | Voltage - Input Offset | Slew Rate | Operating Temperature [Min] | Operating Temperature [Max] | Amplifier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 MHz | 8-PDIP | 8-DIP | 0.3 in | 7.62 mm | 1.5 mA | 10 V | 20 mA | 36 V | Through Hole | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential | |
Texas Instruments INA105BMThe INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages.
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages. | 1 MHz | TO-99-8 | TO-99-8 Metal Can | 1.5 mA | 10 V | 20 mA | 36 V | Through Hole | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential | ||
1 MHz | 8-SOIC | 8-SOIC | 3.9 mm | 1.5 mA | 10 V | 20 mA | 36 V | Surface Mount | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential | ||
Texas Instruments INA105KU/2K5The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages.
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages. | 1 MHz | 8-SOIC | 8-SOIC | 3.9 mm | 1.5 mA | 10 V | 20 mA | 36 V | Surface Mount | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential | |
Texas Instruments INA105KUThe INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages.
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages. | 1 MHz | 8-SOIC | 8-SOIC | 3.9 mm | 1.5 mA | 10 V | 20 mA | 36 V | Surface Mount | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential | |
Texas Instruments INA105KPThe INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages.
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages. | 1 MHz | 8-PDIP | 8-DIP | 0.3 in | 7.62 mm | 1.5 mA | 10 V | 20 mA | 36 V | Through Hole | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential |
Texas Instruments INA105AMThe INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages.
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages. | 1 MHz | TO-99-8 | TO-99-8 Metal Can | 1.5 mA | 10 V | 20 mA | 36 V | Through Hole | 1 | 50 µV | 3 V/µs | -40 °C | 85 °C | Differential |
Description
General part information
INA105 Series
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
The differential amplifier is the foundation of many commonly used circuits. The INA105 provides precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SOIC surface-mount and TO-99 metal packages.
The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision operational amplifier (op amp) and on-chip metal film resistor network. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent tracking of resistors (TCR) maintains gain accuracy and common-mode rejection over temperature. The input common-mode range extends beyond the positive and negative supply rails.
