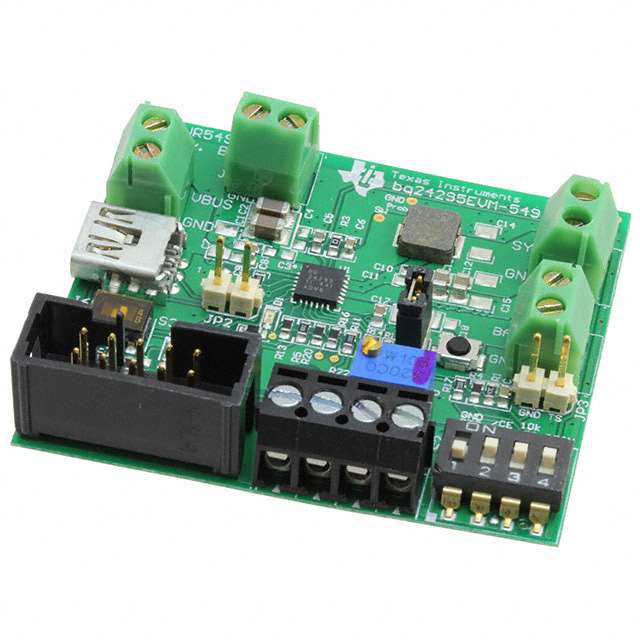

BQ24295EVM-549
ActiveEVAL BOARD BATT CHARGER BQ24295
Deep-Dive with AI
Search across all available documentation for this part.
BQ24295EVM-549
ActiveEVAL BOARD BATT CHARGER BQ24295
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24295EVM-549 | BQ24295 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.4 V |
| Charge Current - Max | - | 3 A |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Over Current, Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C, USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-VFQFN Exposed Pad |
| Programmable Features | - | Current |
| Secondary Attributes | Graphical User Interface (GUI), I2C Interface(s) | Graphical User Interface (GUI), I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-VQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24295 | BQ24295 |
| Voltage - Supply (Max) | - | 6.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Box | 1 | $ 118.80 | |
| Digikey | Box | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 131.66 | |
BQ24295 Series
I2C controlled 1-cell, 3-A battery charger with USB, adjustable voltage, and 1.5A OTG
| Part | Interface | Fault Protection | Number of Cells | Mounting Type | Current - Charging | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Programmable Features | Battery Chemistry | Voltage - Supply (Max) [Max] | Battery Pack Voltage | Charge Current - Max [Max] | Utilized IC / Part | Function | Type | Supplied Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24295RGET | I2C, USB | Over Current, Over Temperature, Over Voltage | 1 | Surface Mount | Constant - Programmable | 85 °C | -40 °C | 24-VQFN (4x4) | 24-VFQFN Exposed Pad | Current | Lithium Ion/Polymer | 6.2 V | 4.4 V | 3 A | |||||
Texas Instruments BQ24295EVM-549 | BQ24295 | Battery Charger | Power Management | Board(s) | Graphical User Interface (GUI), I2C Interface(s) |
Description
General part information
BQ24295 Series
The bq24295 is a highly-integrated switch-mode battery charge management and system power path management devices for 1 cell Li-Ion and Li-polymer battery in a wide range of power bank, tablet and other portable device applications.
Its low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase. The I2C serial interface with charging and system settings makes the device a truly flexible solution.
The device supports 3.9V – 6.2V USB input sources, including standard USB host port and USB charging port with 6.4V over-voltage protection. The bq24295 is compliant with USB 2.0 and USB 3.0 power specifications with input current and voltage regulation. To set the default input current limit, the bq24295 detects the input source through D+/D– detection following the USB battery charging spec 1.2. In addition, the bq24295 detects non-standard 2A/1A adapters. The bq24295 supports battery boost operation by supplying adjustable voltage 4.55 – 5.5V (default 5.1V) on PMID pin with minimum current of 1.5A.
