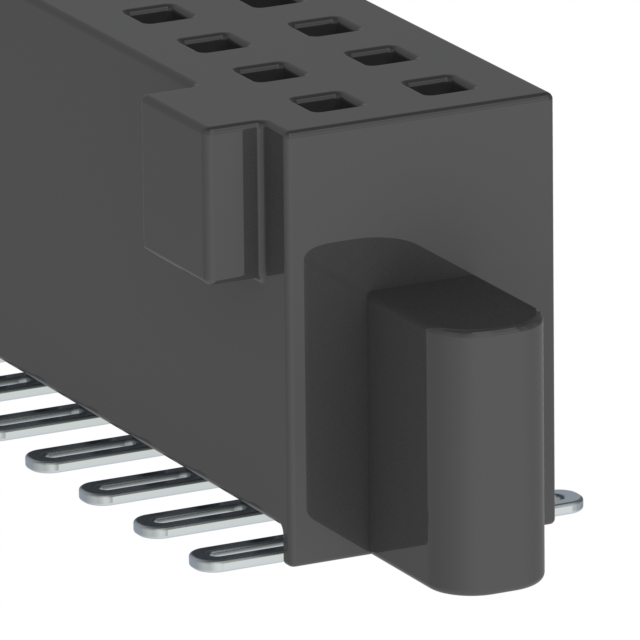

SFM-112-T2-S-D-P-TR

Active

Samtec Inc.

CONN RCPT 24POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFM-112-T2-S-D-P-TR

Active

Samtec Inc.

CONN RCPT 24POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-112-T2-S-D-P-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	11.76 mm, 6.3 mm, 11.61 mm, 8.08 mm, 6.15 mm, 7.92 mm, 9.86 mm, 9.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-112 Series

Part	Material Flammability Rating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Connector Type	Contact Shape	Style	Number of Rows	Number of Positions Loaded	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Height	Insulation Height	Contact Material	Mated Stacking Heights	Number of Positions	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post
Samtec Inc. SFM-112-L2-S-D-N	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24
Samtec Inc. SFM-112-T2-S-D-P-TR	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24	Pick and Place
Samtec Inc. SFM-112-02-S-D-K	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24	Pick and Place
Samtec Inc. SFM-112-02-L-DH-TR	UL94 V-0	Surface Mount Right Angle	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	10 çin	0.25 çm	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.183 in	4.65 mm	Beryllium Copper		24	Board Guide
Samtec Inc. SFM-112-02-SM-D-A	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24	Board Guide
Samtec Inc. SFM-112-T2-H-D	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Gold	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24		3 µin	0.076 µm
Samtec Inc. SFM-112-L3-F-D	UL94 V-0	Through Hole	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	3 µin	0.076 µm	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.18 "	4.57 mm	Beryllium Copper	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	24				0.075 in	1.91 mm
Samtec Inc. SFM-112-02-S-D-K-TR	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24	Pick and Place
Samtec Inc. SFM-112-02-S-D-LC-P	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24	Board Lock Pick and Place
Samtec Inc. SFM-112-T2-S-D-A-TR	UL94 V-0	Surface Mount	0.05 in	1.27 mm	Female Socket	Gold	250 VAC	30 Áin	0.76 Ám	Solder	3.2 A	Push-Pull	-55 °C	125 °C	Tin	Receptacle	Square	Board to Board Cable	2	All	Black	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.185 in	4.7 mm	Beryllium Copper	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	24	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 3.01

Description

General part information

SFM-112 Series

24 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
