Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-112-L2-S-D-N |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Per Contact) | 3.2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.185 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Height Options | 6.30mm, 7.92mm, 11.76mm, 9.86mm, 6.15mm, 8.08mm, 11.61mm, 9.70mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 24 pos |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.05 in |
| Row Spacing - Mating | 0.05 in |
| Style | Board, Board or Cable |
| Termination | Solder |
| Voltage Rating | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tube | 30 | $ 7.87 | <6d |
| Samtec Inc. | N/A | 1 | $ 8.14 | <1d |
| 10 | $ 7.52 | |||
| 25 | $ 7.11 | |||
| 50 | $ 6.86 | |||
| 100 | $ 5.28 | |||
| 500 | $ 4.76 | |||
| 1000 | $ 3.71 | |||
| 2000 | $ 2.67 | |||
CAD
3D models and CAD resources for this part
Description
General part information
SFM-112 Series

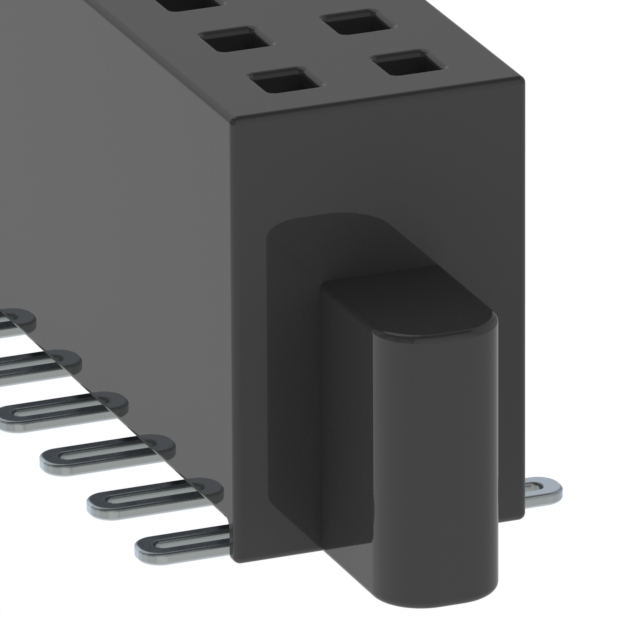

24 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
